Housing material: 316L STAINLESS STEEL
Power: 800 watts
Brightness: 111,300 lumens
Lens angles: 70º | 38º | 14×46º | 14º
Colour temperature: 6500K - 2200K
Housing material: 316L STAINLESS STEEL
Power: 320 - 240 watts
Brightness: 44,100 - 32,600 lumens
Lens angles: 70º | 38º | 14×46º | 14º
Colour temperature: 6500K - 2200K
Housing material: 316L STAINLESS STEEL
Power: 150 watts
Brightness: 22,100 lumens
Lens angles: 70º | 38º | 14×46º | 14º
Colour temperature: 6500K - 2200K
Ensuring lighting in environments exposed to extreme corrosion and aggressive chemicals requires a sophisticated engineering approach. These demanding environments can rapidly degrade the performance and lifetime of both conventional and LED luminaires. Factors such as saltwater, corrosive chemicals and metal oxides often pose unexpected challenges. At JEL Products, we have used our expertise to provide a superior response with specific modifications to our industrial housings.
As market leaders in sustainable lighting technology for extreme environments, we have developed a unique 316 stainless steel housing that effectively dissipates heat even at temperatures up to +50°C. Our innovative approach sets industry standards.
We introduce two types of LED luminaires designed for maximum corrosion resistance, available up to 800W. When choosing the right luminaire for your application, we invite you to share your technical specifications with us. This will allow us to offer a tailor-made lighting solution that perfectly fits your scenario.

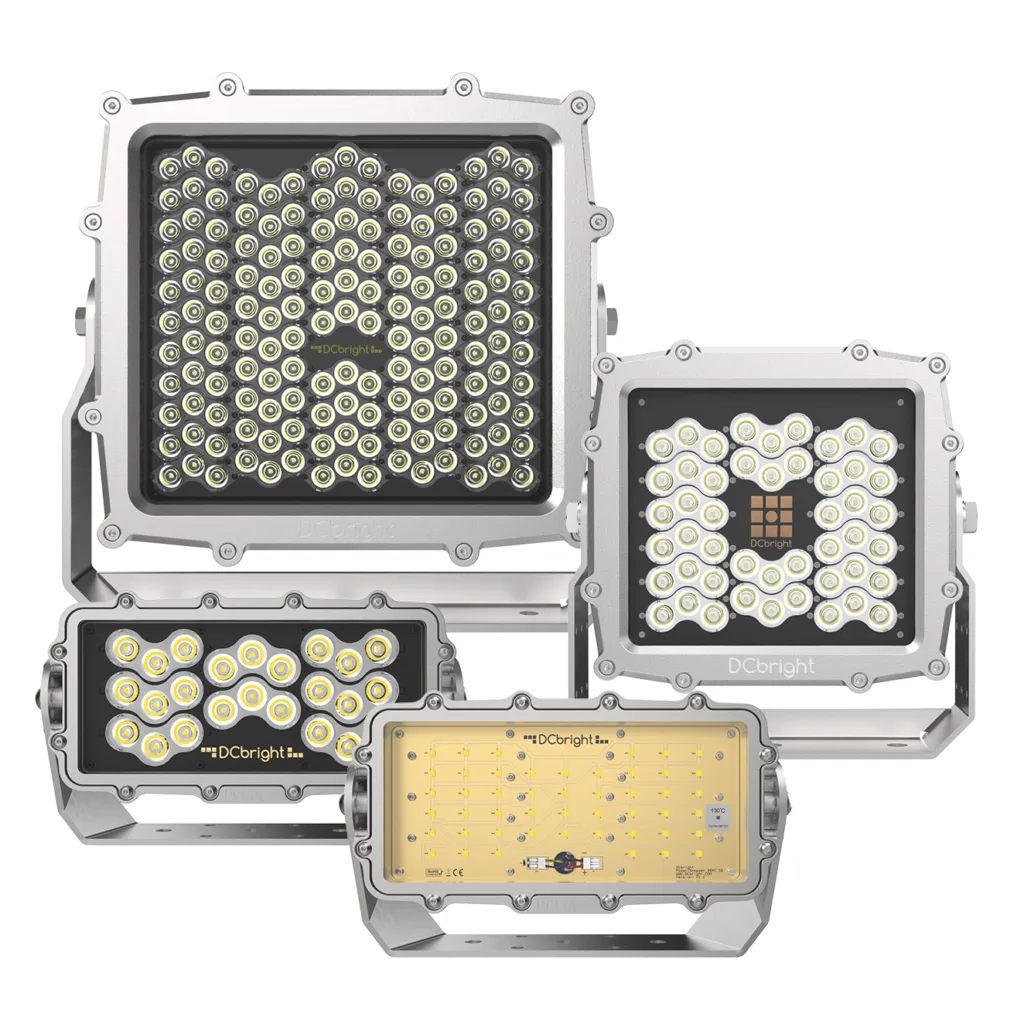

Our 316 stainless steel floodlights are the advanced versions of our proven Heavy Duty armour series. Features of this series include:
- A range of electronic security measures, including EMC compatibility.
- Innovative temperature sensor technology to prevent overheating and extend lifespan.
- IP69K waterproofing, also the highest achievable waterproof rating.
- IK10 impact-resistant.
Manufactured from high-quality materials, the lenses of these floodlights are a core component for efficient light guidance. These maximise light output and effectively direct light from the LEDs to the desired location. Depending on your needs, you can choose from four lens types: 69° or 38° wide beam, 13° far beam or 14×46° flare lens. But you can also choose to get customised advice from one of our experts.
As with all our products, these stainless steel floodlights are proudly developed in the Netherlands. The innovative cooling fins on the back ensure maximum heat dissipation, optimising LED performance. Kopting for our stainless steel floodlights means choosing quality and reliability. Enjoy an impressive standard 20-year guarantee on the housing in corrosion-sensitive applications and an expected lifetime of 100,000 hours.
Whether you operate in offshore, heavy industry, chemical processing or steel fabrication, our extreme corrosion-resistant luminaires are second to none. We invite you to experience for yourself the impressive strength and reliability of our stainless steel luminaires. Contact our team of specialists for expert advice on the optimal lighting solution for your unique needs.
Models available in both AC/DC versions
Light output
Brightness: 111,300 lumens
Efficiency: 139 lumens/Watt
Power consumption: 800W
Rated voltage: 180-528VAC
Luminaire specifications
IP rating: IP69K
Impact rating: IK10
CRI (Ra): >70
Operating temperature range: -45°C to +50°C
Lifetime (TM21): 145 000 hours - L80B10
Lamp housing material: 316L Stainless Steel
Lamp bracket material: Stainless steel 316L
Front material: UV-coated polycarbonate, optionally also as impact-resistant glass (IK09).
Colour: 316 Stainless steel
Cable type: PUR - H07BQ-F
Cable length: 2 m
Weight and packaging
Lamp weight: 32.0 kg
Bracket weight: 4.3 kg
Gross weight: 36.3 kg
Product dimensions: 515 x 440 x 95 mm
Packaging dimensions: 570 x 505 x 165 mm
Available model options
Lens angles: 70º | 38º | 14×46º | 14º
Tilt possibility: 240º in 30º steps
Light beam colour: 6500K (other colours on request)
Warranty
Warranty 20 years (housing)
Light output
Brightness: 100,200 lumens
Efficiency: 125 lumens/Watt
Power consumption: 800W
Rated voltage: 24V (20-35V)
Luminaire specifications
IP rating: IP69K
Impact rating: IK10
CRI (Ra): >70
Operating temperature range: -45°C to +50°C
Lifetime (TM21): 145 000 hours - L80B10
Lamp housing material: 316L Stainless Steel
Lamp bracket material: Stainless steel 316L
Front material: UV-coated polycarbonate, optionally also as impact-resistant glass (IK09).
Colour: 316 Stainless steel
Cable type: PUR - H07BQ-F
Cable length: 2 m
Weight and packaging
Lamp weight: 32.0 kg
Bracket weight: 4.3 kg
Gross weight: 36.3 kg
Product dimensions: 515 x 440 x 95 mm
Packaging dimensions: 570 x 505 x 165 mm
Available model options
Lens angles: 70º | 38º | 14×46º | 14º
Tilt possibility: 240º in 30º steps
Light beam colour: 6500K (other colours on request)
Warranty
Warranty 20 years (housing)
Models available in both AC/DC versions
Light output
Brightness: 44,100 lumens
Efficiency: 138 lumens/Watt
Power consumption: 320W
Rated voltage: 90-305VAC
Luminaire specifications
IP rating: IP69K
Impact rating: IK10
CRI (Ra): >70
Operating temperature range: -45°C to +50°C
Lifetime (TM21): 145 000 hours - L80B10
Lamp housing material: 316L Stainless Steel
Lamp bracket material: Stainless steel 316L
Front material: UV-coated polycarbonate, optionally also as impact-resistant glass (IK09).
Colour: 316 Stainless steel
Cable type: PUR - H07BQ-F
Cable length: 2 m
Weight and packaging
Lamp weight: 14.3 kg
Bracket weight: 1.7 kg
Gross weight: 16.0 kg
Product dimensions: 320 x 290 x 90 mm
Packaging dimensions: 380 x 350 x 150 mm
Available model options
Lens angles: 70º | 38º | 14×46º | 14º
Tilt possibility: 240º in 30º steps
Light beam colour: 6500K (other colours on request)
Warranty
Warranty 20 years (housing)
Light output
Brightness: 40,800 lumens
Efficiency: 127 lumens/Watt
Power consumption: 320W
Rated voltage: 24V (20-35V)
Luminaire specifications
IP rating: IP69K
Impact rating: IK10
CRI (Ra): >70
Operating temperature range: -45°C to +50°C
Lifetime (TM21): 145 000 hours - L80B10
Lamp housing material: 316L Stainless Steel
Lamp bracket material: Stainless steel 316L
Front material: UV-coated polycarbonate, optionally also as impact-resistant glass (IK09).
Colour: 316 Stainless steel
Cable type: PUR - H07BQ-F
Cable length: 2 m
Weight and packaging
Lamp weight: 14.3 kg
Bracket weight: 1.7 kg
Gross weight: 16.0 kg
Product dimensions: 320 x 290 x 90 mm
Packaging dimensions: 380 x 350 x 150 mm
Available model options
Lens angles: 70º | 38º | 14×46º | 14º
Tilt possibility: 240º in 30º steps
Light beam colour: 6500K (other colours on request)
Warranty
Warranty 20 years (housing)
Light output
Brightness: 32,600 lumens
Efficiency: 136 lumens/Watt
Power consumption: 240W
Rated voltage: 90-305VAC
Luminaire specifications
IP rating: IP69K
Impact rating: IK10
CRI (Ra): >70
Operating temperature range: -45°C to +50°C
Lifetime (TM21): 145 000 hours - L80B10
Lamp housing material: 316L Stainless Steel
Lamp bracket material: Stainless steel 316L
Front material: UV-coated polycarbonate, optionally also as impact-resistant glass (IK09).
Colour: 316 Stainless steel
Cable type: PUR - H07BQ-F
Cable length: 2 m
Weight and packaging
Lamp weight: 14.3 kg
Bracket weight: 1.7 kg
Gross weight: 16.0 kg
Product dimensions: 320 x 290 x 90 mm
Packaging dimensions: 380 x 350 x 150 mm
Available model options
Lens angles: 70º | 38º | 14×46º | 14º
Tilt possibility: 240º in 30º steps
Light beam colour: 6500K (other colours on request)
Warranty
Warranty 20 years (housing)
Models available in both AC/DC versions
Light output
Brightness: 27,000 lumens
Efficiency: 150 lumens/Watt
Power consumption: 180W
Rated voltage: 90-305VAC
Luminaire specifications
IP rating: IP69K
Impact rating: IK10
CRI (Ra): >70
Operating temperature range: -45°C to +50°C
Lifetime (TM21): 145 000 hours - L80B10
Lamp housing material: 316L Stainless Steel
Lamp bracket material: Stainless steel 316L
Front material: UV-coated polycarbonate, optionally also as impact-resistant glass (IK09).
Colour: 316 Stainless steel
Cable type: PUR - H07BQ-F
Cable length: 2 m
Weight and packaging
Lamp weight: 6.3 kg
Bracket weight: 0.7 kg
Gross weight: 7.0 kg
Product dimensions: 320 x 180 x 120 mm
Packaging dimensions: 340 x 210 x 150 mm
Available model options
Lens angles: 70º | 38º | 14×46º | 14º
Tilt possibility: 240º in 30º steps
Light beam colour: 6500K (other colours on request)
Warranty
Warranty 20 years (housing)
Light output
Brightness: 22,000 lumens
Efficiency: 147 lumens/Watt
Power consumption: 150W
Rated voltage: 20-35VDC
Luminaire specifications
IP rating: IP69K
Impact rating: IK10
CRI (Ra): >70
Operating temperature range: -45°C to +50°C
Lifetime (TM21): 145 000 hours - L80B10
Lamp housing material: 316L Stainless Steel
Lamp bracket material: Stainless steel 316L
Front material: UV-coated polycarbonate, optionally also as impact-resistant glass (IK09).
Colour: 316 Stainless steel
Cable type: PUR - H07BQ-F
Cable length: 2 m
Weight and packaging
Lamp weight: 6.3 kg
Bracket weight: 0.7 kg
Gross weight: 7.0 kg
Product dimensions: 320 x 180 x 120 mm
Packaging dimensions: 320 x 210 x 150 mm
Available model options
Lens angles: 70º | 38º | 14×46º | 14º
Tilt possibility: 240º in 30º steps
Light beam colour: 6500K (other colours on request)
Warranty
Warranty 20 years (housing)
