The indestructible heavy-duty work light: 55 to 70 W and up to 8,400 lumens, for machinery, cranes, and heavy equipment.
Built for environments where a standard work light falls short mechanically: dirt, water, vibration, and impact as a daily reality. Available in DC and AC, and as the only work light in the line also fully in 316L stainless steel. Dakar-tested.
Response within 1 business day by an engineer. Free lighting calculation and trial luminaire possible.

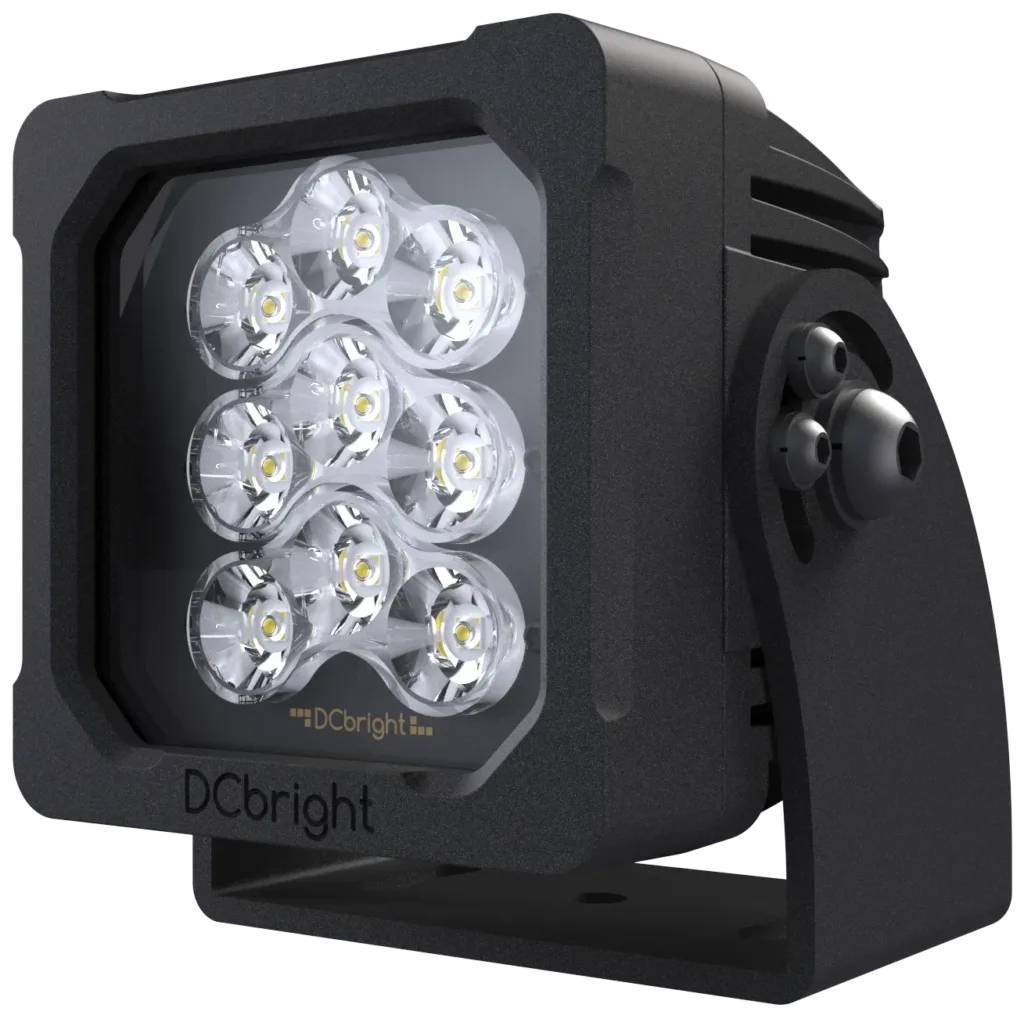

Piranha 9 in Titanium Black, with the standard 316L bracket.
AC, 70 W en 120 lm/W
also IP66, IP67, and IP68
with polycarbonate, IK09 with glass
at resonance, IEC 60068-2-6
on the entire luminaire
including 316L bracket
The most heavily built work light of the line, for local task lighting close to the application where standard lamps are too fragile.
The Piranha is not intended for every task. Being clear about the limitations yields a better end result.
The same optics and mounting pattern; what differs is the power supply and material. DC directly on the vehicle electrical system, AC with remote driver, and entirely 316L for corrosive environments.
6,300 – 8,200 lm
Directly on the vehicle's electrical system: the Piranha 6 at 9–35 V for 12- and 24-volt systems, the Piranha 9 at 20–32 V. Short cable with Deutsch DT04-2P.
PIDC01 · PIDC02
8,400 lm at 70 W
For power supply, with a remote BLD075 driver that fits in the DRB-1 driver box. Dimmable with 0–10 V, PWM, and DALI-2, also configurable via NFC.
PIAC01
8,200 – 8,400 lm
Entirely 316L, untreated: corrosion class C5 and CX with a 20-year warranty on the housing. For ships, quays, and chemical environments.
PISS01 · PISS02
Five work lights, with increasing output. The right choice depends on the machine's requirements: size, durability, or glare-free work lighting.
| Luminaire | Role in the range | Power | IP and IK | Weight |
|---|---|---|---|---|
 Goby Mini2,300 lumens | The most compact work light, for smaller installation locations. | 18W | IP69K / IK10 | 1.1 kg |
 DarkLicht Mini4,800 lumens | Compact, glare-free work light with full cut-off. | 30 W | IP69K / IK08 | 2.2 lbs |
 Goby8,200 lumens | The classic professional work light, versatile in four power levels. | 35 to 65 W | IP69K / IK10 | 1.8 kg |
 Piranha8,400 lumens | The most robustly built work light, also available in 316L and AC. | 55 to 70 W | IP69K / IK10 | 3.1 kg |
 DarkLicht S12,825 lumens | The largest non-glare work light, with the output of a small floodlight. | 60 to 75 W | IP69K / IK08 | 3.3 kg |
The Piranha is available in DC and AC, in aluminum and in 316L. Choose a version and the complete specification list below updates accordingly, including part number, current consumption, and connection.
Item number
The input at 12 and 24 V: 55 W and 6,300 lumens, directly on the vehicle's electrical system.
6,300 lm
| Luminous flux | 6,300 lm |
| Power consumption | 55 W |
| Efficiency | 115 lm/W |
| Optics | 14° spot, 38°, 69°, 14° × 46° flare; combinations possible |
| Color temperatures | 6500K, 5000K, 4000K, 2700K and amber 2200K |
| Bi-color | 4000K with amber 2200K, switchable during operation |
| CRI (Ra) | > 70, or optionally 80 or 90 |
| Color consistency | 3-step MacAdam |
| Voltage range | 9–35 VDC |
| Nominal voltage | 24 V / 12 V |
| Current draw | approx. 2.3 A at 24 V · 4.6 A at 12 V |
| Dimming | custom work |
| Driver | DC driver circuit board |
| Driver Type | not applicable, driver on board |
| Inrush current | not applicable, driver on board |
| Luminaires per MCB | not applicable, driver on board |
| Surge protection | not applicable, driver on board |
| Labor Factor and THD | not applicable, driver on board |
| Housing | cast aluminum, < 0.08 % copper |
| Surface treatment | conversion layer with 2-layer titanium e-coating |
| Bracket | high tensile strength 316L stainless steel, unlimited from −45° to +90° |
| Front | UV-resistant polycarbonate IK10 or chemically toughened glass IK09 |
| Color | Titanium Black |
| Dimensions | 150 × 122 × 115 mm |
| Weight | 3.1 kg, including bracket |
| Lead time | Standard within a week, custom by arrangement |
| Cable type | H07BQ-F, 2 cores (2 × 1.5 mm²), 0.3 m |
| Connection | pre-assembled cable 0.3 m with Deutsch DT04-2P |
| Accessories | Crane Light Director |
| IP Ratings | IP66, IP67, IP68 and IP69K |
| Impact Resistance | IK10 with polycarbonate, IK09 with glass |
| Corrosion class | C5 Industrial and Maritime (ISO 9223) |
| Vibration class | 6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27 |
| Operating temperature | −45 to +50 °C |
| LED lifespan | TM-21 L90B05 > 360,000 hours |
| Driver lifespan | not applicable |
| MTBF driver | not applicable, driver on board |
| Warranty | 5 years on the complete luminaire |
| Certification | CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request. |
| Packaging | depending on quantity, upon request |
Item number
The full 70 W on the 24 V vehicle electrical system: 8,200 lumens, the most frequently installed Piranha.
8,200 lm
| Luminous flux | 8,200 lm |
| Power consumption | 70 W |
| Efficiency | 117 lm/W |
| Optics | 14° spot, 38°, 69°, 14° × 46° flare; combinations possible |
| Color temperatures | 6500K, 5000K, 4000K, 2700K and amber 2200K |
| Bi-color | 4000K with amber 2200K, switchable during operation |
| CRI (Ra) | > 70, or optionally 80 or 90 |
| Color consistency | 3-step MacAdam |
| Voltage range | 20–32 VDC |
| Nominal voltage | 24 V |
| Current draw | approx. 2.9 A at 24 V |
| Dimming | custom work |
| Driver | DC driver circuit board |
| Driver Type | not applicable, driver on board |
| Inrush current | not applicable, driver on board |
| Luminaires per MCB | not applicable, driver on board |
| Surge protection | not applicable, driver on board |
| Labor Factor and THD | not applicable, driver on board |
| Housing | cast aluminum, < 0.08 % copper |
| Surface treatment | conversion layer with 2-layer titanium e-coating |
| Bracket | high tensile strength 316L stainless steel, unlimited from −45° to +90° |
| Front | UV-resistant polycarbonate IK10 or chemically toughened glass IK09 |
| Color | Titanium Black |
| Dimensions | 150 × 122 × 115 mm |
| Weight | 3.1 kg, including bracket |
| Cable type | H07BQ-F, 2 cores (2 × 1.5 mm²), 0.3 m |
| Connection | pre-assembled cable 0.3 m with Deutsch DT04-2P |
| Accessories | Crane Light Director |
| IP Ratings | IP66, IP67, IP68 and IP69K |
| Impact Resistance | IK10 with polycarbonate, IK09 with glass |
| Corrosion class | C5 Industrial and Maritime (ISO 9223) |
| Vibration class | 6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27 |
| Operating temperature | −45 to +50 °C |
| LED lifespan | TM-21 L90B05 > 360,000 hours |
| Driver lifespan | not applicable |
| MTBF driver | not applicable, driver on board |
| Warranty | 5 years on the complete luminaire |
| Certification | CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request. |
| Packaging | depending on quantity, upon request |
Item number
For power supply: 8,400 lumens with a remote BLD075 driver outside the luminaire.
8,400 lm
| Luminous flux | 8,400 lm |
| Power consumption | 70 W |
| Efficiency | 120 lm/W |
| Optics | 14° spot, 38°, 69°, 14° × 46° flare; combinations possible |
| Color temperatures | 6500K, 5000K, 4000K, 2700K and amber 2200K |
| Bi-color | 4000K with amber 2200K, switchable during operation |
| CRI (Ra) | > 70, or optionally 80 or 90 |
| Color consistency | 3-step MacAdam |
| Voltage range | 90–305 of 180–528 VAC |
| Nominal voltage | Not applicable to AC |
| Current draw | approx. 0.2 A at 380–480 V · 0.3 A at 220–277 V · 0.6 A at 120 V |
| Dimming | 0–10 V, PWM, and DALI-2, or via NFC |
| Driver | remote BLD075, compatible with DRB-1 |
| Driver Type | BLD075, 75 W |
| Inrush current | 66 A peak, T50 170 µs at 220 V |
| Luminaires per MCB | B16: 11 · C16: 19 · C25: 30 · D16: 32 |
| Surge protection | 6 kV line-to-line, 10 kV line-to-ground (IEC 61000-4-5) |
| Labor Factor and THD | > 0.9 at 65–100 % load, THD < 15 % at 60–100 % |
| Housing | cast aluminum, < 0.08 % copper |
| Surface treatment | conversion layer with 2-layer titanium e-coating |
| Bracket | high tensile strength 316L stainless steel, unlimited from −45° to +90° |
| Front | UV-resistant polycarbonate IK10 or chemically toughened glass IK09 |
| Color | Titanium Black |
| Dimensions | 150 × 122 × 115 mm |
| Weight | 3.1 kg, including bracket |
| Cable type | H07BQ-F, 4-core (2 × 1.5 mm² + 2 × 0.5 mm²), 0.3 m |
| Connection | pre-assembled cable, loose wires |
| Accessories | DRB-1 driver box |
| IP Ratings | IP66, IP67, IP68 and IP69K |
| Impact Resistance | IK10 with polycarbonate, IK09 with glass |
| Corrosion class | C5 Industrial and Maritime (ISO 9223) |
| Vibration class | 6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27 |
| Operating temperature | −45 to +50 °C |
| LED lifespan | TM-21 L90B05 > 360,000 hours |
| Driver lifespan | ≥ 100,000 hours at Tc 75 °C, ≥ 130,000 hours at Tc 50 °C |
| MTBF driver | ≥ 320,000 hours at Tc 75 °C (MIL-HDBK-217F) |
| Warranty | 5 years on the complete luminaire |
| Certification | CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request. |
| Packaging | depending on quantity, upon request |
Item number
Made entirely of stainless steel, designed for the 24 V onboard power system, with a 2.0 m cable and DT04-2P connector.
8,200 lm
| Luminous flux | 8,200 lm |
| Power consumption | 70 W |
| Efficiency | 117 lm/W |
| Optics | 14° spot, 38°, 69°, 14° × 46° flare; combinations possible |
| Color temperatures | 6500K, 5000K, 4000K, 2700K and amber 2200K |
| Bi-color | 4000K with amber 2200K, switchable during operation |
| CRI (Ra) | > 70, or optionally 80 or 90 |
| Color consistency | 3-step MacAdam |
| Voltage range | 20–32 VDC |
| Nominal voltage | 24 V |
| Current draw | approx. 2.9 A at 24 V |
| Dimming | custom work |
| Driver | DC driver circuit board |
| Driver Type | not applicable, driver on board |
| Inrush current | not applicable, driver on board |
| Luminaires per MCB | not applicable, driver on board |
| Surge protection | not applicable, driver on board |
| Labor Factor and THD | not applicable, driver on board |
| Housing | 316L stainless steel |
| Surface treatment | not applicable, untreated 316L |
| Bracket | high tensile strength 316L stainless steel, unlimited from −45° to +90° |
| Front | IK09 chemically tempered glass or borosilicate glass |
| Color | stainless steel, untreated |
| Dimensions | 166 × 166 × 102 mm |
| Weight | 5.0 kg, including bracket |
| Cable type | H07BQ-F, 2.0 m with Deutsch DT04-2P |
| Connection | pre-assembled cable with Deutsch DT04-2P connector |
| Accessories | Crane Light Director |
| IP Ratings | IP66, IP67, IP68 and IP69K |
| Impact Resistance | IK09 |
| Corrosion class | C5 and CX (ISO 9223); CRC III according to EN 1993-1-4, PREN ≈ 24 |
| Vibration class | 6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27 |
| Operating temperature | −45 to +50 °C |
| LED lifespan | TM-21 L90B05 > 360,000 hours |
| Driver lifespan | not applicable |
| MTBF driver | not applicable, driver on board |
| Warranty | 20 years on the housing, 5 years on other parts |
| Certification | CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request. |
| Packaging | depending on quantity, upon request |
Item number
The stainless steel AC model: 8,400 lumens with BLD075 remote control, 2.0 m cable.
8,400 lm
| Luminous flux | 8,400 lm |
| Power consumption | 70 W |
| Efficiency | 120 lm/W |
| Optics | 14° spot, 38°, 69°, 14° × 46° flare; combinations possible |
| Color temperatures | 6500K, 5000K, 4000K, 2700K and amber 2200K |
| Bi-color | 4000K with amber 2200K, switchable during operation |
| CRI (Ra) | > 70, or optionally 80 or 90 |
| Color consistency | 3-step MacAdam |
| Voltage range | 90–305 of 180–528 VAC |
| Nominal voltage | Not applicable to AC |
| Current draw | approx. 0.2 A at 380–480 V · 0.3 A at 220–277 V · 0.6 A at 120 V |
| Dimming | 0–10 V, PWM, and DALI-2, or via NFC |
| Driver | remote BLD075, compatible with DRB-1 |
| Driver Type | BLD075, 75 W |
| Inrush current | 66 A peak, T50 170 µs at 220 V |
| Luminaires per MCB | B16: 11 · C16: 19 · C25: 30 · D16: 32 |
| Surge protection | 6 kV line-to-line, 10 kV line-to-ground (IEC 61000-4-5) |
| Labor Factor and THD | > 0.9 at 65–100 % load, THD < 15 % at 60–100 % |
| Housing | 316L stainless steel |
| Surface treatment | not applicable, untreated 316L |
| Bracket | high tensile strength 316L stainless steel, unlimited from −45° to +90° |
| Front | IK09 chemically tempered glass or borosilicate glass |
| Color | stainless steel, untreated |
| Dimensions | 166 × 166 × 102 mm |
| Weight | 5.0 kg, including bracket |
| Cable type | H07BQ-F, 2.0 m, bare wires |
| Connection | pre-assembled cable, loose wires |
| Accessories | DRB-1 driver box |
| IP Ratings | IP66, IP67, IP68 and IP69K |
| Impact Resistance | IK09 |
| Corrosion class | C5 and CX (ISO 9223); CRC III according to EN 1993-1-4, PREN ≈ 24 |
| Vibration class | 6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27 |
| Operating temperature | −45 to +50 °C |
| LED lifespan | TM-21 L90B05 > 360,000 hours |
| Driver lifespan | ≥ 100,000 hours at Tc 75 °C, ≥ 130,000 hours at Tc 50 °C |
| MTBF driver | ≥ 320,000 hours at Tc 75 °C (MIL-HDBK-217F) |
| Warranty | 20 years on the housing, 5 years on other parts |
| Certification | CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request. |
| Packaging | depending on quantity, upon request |
All values above are also listed on the datasheet, including dimensions and order code.
The driver is separate from the luminaire and can be placed in the DRB-1 driver box. The values below are from the Upowertek datasheets and apply per driver, not per luminaire.
75 W, remote, for the AC versions
T50 170 µs at 220 V
line-to-line / line-to-earth, IEC 61000-4-5
at Tc 75 °C, MIL-HDBK-217F
| Driver | B16 | C16 | C25 | D16 |
|---|---|---|---|---|
| BLD075 · AC 70 W | 11 | 19 | 30 | 32 |
Calculated with ABB S200 at 220 V, from the manufacturer's MCB table. Guideline for the engineering phase and not a replacement for the installation calculation; for verification we provide a lighting advice and installation calculation. If there are multiple drivers in one luminaire, divide the number by that number of drivers.
The lens angle determines where the light ends up. Below are the measured angles from our own IES library, with the optic name as the ordering code next to it. An optic name is not a measured value: the 14° optic measures 13°. If you are in doubt between two angles, we will substantiate the choice with a free lighting calculation.
Driving light for distance, 20 to 80 m
The most chosen angle, 8 to 30 m
Wide working range close up, up to 15 m
Asymmetrical, along boom, roadway or quay
| Optics | Beam angle 50 % | Veldhoek 10 % | Application distance |
|---|---|---|---|
| 14° spot | 13° | see diagram | 20 to 80 m, measured on the DCB9 optics |
| 38° | nominal 38° | see diagram | 8 to 30 m, the standard choice |
| 69° | 69° nominal | see diagram | up to 15 m, wide close up |
| 14° × 46° flare | asymmetric | see diagram | elongated zones, combinations possible |
The beam angle is the full angle between the directions in which the intensity has decreased to 50 % of the peak; the field angle is 10 %. The upward light output is 0 % at 0° tilt. Combinations of optics within a single luminaire are possible.
On machines, booms, and cranes, the mounting determines whether a work light will reach its lifespan. The Piranha combines a short pre-assembled cable with a Deutsch connector with the strongest bracket in the line.
The DC versions come with a short, pre-assembled 0.3-meter cable with a DT04-2P connector: a single connection to the vehicle's electrical system, without a junction box or cable gland as a source of interference.
High tensile strength stainless steel clamp, infinitely adjustable within the range. The bundle remains secure even under continuous vibration.
Self-aligning suspension for crane use, which keeps the bundle aimed at the load while the boom moves.
The AC versions have a remote BLD075 driver; the DRB-1 accommodates this, either on the structure or in the cabinet.
A fall protection cable is optionally available and is often a strict requirement when installed above a work area. The DRB-1 driver box houses the remote driver and is mounted directly behind the luminaire using the rear mount bracket. The Crane Light Stabilizer has its own product page. For tower cranes see also Tower crane lighting.
All dimensions in millimeters. The mounting pattern and bracket cross-sections are in the datasheet; DXF and STEP files are available upon request.
Views with dimensions. Drawing not to scale.
| Luminaire | 150 × 122 × 115 mm |
| 316L luminaire | 166 × 166 × 102 mm |
| Weight | 3.1 kg, 316L 5.0 kg |
| Bracket adjustment | unlimited, −45° to +90° |
| Connection | 0.3-meter cable with Deutsch DT04-2P (DC), unused wires (AC) |
| Color | Titanium Black, 316L untreated |
| Packaging | on request |
The weight listed includes the bracket. Packaging dimensions and weight are included in the listing because JEL handles shipping.
Where the Piranha is installed in practice, and why there.
On haul trucks, loaders, and excavators where impact and vibrations are part of everyday operations. The cast housing and IK10 rating form the foundation for this.
For task lighting on the boom and crane bridge, close to the load and hook. With the Crane Light Director, the beam remains focused on the load; OEM-installed on Sany cranes.
Eurol Rallysport's rally trucks drove the Dakar: continuous shocks, dust and water, for two weeks. The toughest practical test there is.
On booms, frames, and service points of construction machinery: direct view of the work area and machine zone, even during high-pressure cleaning at the end of the day.
For ships, quays, the chemical industry and offshore applications, the Piranha is made entirely of 316L: housing, bolts and bracket, untreated and without a coating that can be damaged. The front is chemically toughened glass or borosilicate.
The lighting performance is identical to the aluminum version: 8,400 lm for AC, 8,200 lm for DC, with the same optics. Only the size and weight differ: 166 × 166 × 102 mm and 5.0 kg.
| Material | 316L, untreated, PREN ≈ 24 |
| Corrosion class | C5 in CX (ISO 9223), CRC III |
| Front | chemically toughened glass or borosilicate |
| Warranty | 20 years housing, 5 years other |
CRC III according to EN 1993-1-4. See also corrosion-resistant lighting.
Every claim carries its condition in the same sentence. You can read more about the test methods at Product Quality and Warranty.
Neutral salt spray test in accordance with ISO 9227, performed on a cast housing that had been scratched beforehand: no coating delamination after 1,007 hours.
Vibration-resistant up to 6 G at resonance in accordance with IEC 60068-2-6, with shock testing in accordance with IEC 60068-2-27.
Dakar-tested on the rally trucks of Eurol Rallysport and operating daily on mining equipment, cranes, and earthmoving machinery. If a work light survives there, it will survive anywhere.
Four pages with the full specification, dimensions and order code. Available for immediate download.
STEP or DXF for your own drawing work, including the mounting pattern of the bracket.
All 30 versions and optics of the Piranha in EULUMDAT (.ldt) format, combined in a single 1.5 MB ZIP file. DIALux and Relux can read these files directly. The part number is included in the file name and within the file itself. We provide IES files upon request.
Is your question not listed, or would you like something calculated? An engineer will respond within 1 business day.
Both are lens-type work lights with the same optics. The Piranha is the more heavily built version: 3.1 kg versus 1.8 kg, a bracket that clamps infinitely from −45° to +90°, and the only one available in AC and completely in 316L. The Goby is lighter and has the Deutsch connector integrated directly into the housing. If you are in doubt, the environment is the decisive factor: the harsher it is, the sooner you should choose the Piranha.
The Piranha 6 operates on 9–35 V and covers 12- and 24-volt networks; the Piranha 9 delivers a full 8,200 lm at 24 V. If mains power is available, there is the AC version with remote driver. If the environment is corrosive, such as on ships, quays, or in chemical plants, there is the 316L in DC or AC.
The DC versions come with a short pre-assembled 0.3 m cable with a DT04-2P: waterproof, vibration-resistant, and can be connected to the on-board electrical system without a junction box. The AC versions have stripped wires for connection to the remote driver.
For the AC version with the BLD075 driver: 11 on a B16, 19 on a C16, 30 on a C25, and 32 on a D16, calculated using ABB S200 at 220 V, per driver. This is a guideline for the engineering phase and not a replacement for the installation calculation.
The AC version dims via 0–10 V, PWM, and DALI-2, and can be configured via NFC. For the DC versions, dimming is customized; group switching is possible via the on-board power supply.
The 38° is the standard choice for work surfaces at 8 to 30 meters. The 14° spot (measured 13°) bridges distance, the 69° illuminates broadly up close, and the 14° × 46° flare lays an asymmetrical path along the boom or lane. Combinations within a single machine are common; we advise per mounting position.
Completely 316L, untreated: there is no coating that can be damaged. Corrosion class C5 and CX according to ISO 9223, CRC III according to EN 1993-1-4 with PREN ≈ 24, and a 20-year warranty on the housing. The front is chemically toughened glass or borosilicate.
Yes. The luminaire has been tested to IP66, IP67, IP68, and IP69K. All of these classes are mentioned because they are different tests: IP69K is high-pressure and high-temperature steam jet, IP68 is immersion. One does not imply the other.
Yes. The vibration class is 6 G at resonance according to IEC 60068-2-6, with shock testing according to IEC 60068-2-27. The practical test was tougher: the Piranha completed the Dakar Rally on the rally trucks of Eurol Rallysport.
The 360,000 hours is a TM-21 L90B05 value: at that point, at least 95 % of the luminaires will still be delivering at least 90 % of their initial light output. This is more stringent than the standard L70 and L80 specifications. In practice, environmental conditions and installation quality determine how well the luminaire performs.
No. The luminaire is not intended for hazardous areas. If ATEX is a requirement, please discuss this in advance, and we will determine a suitable solution together.
Yes. The Piranha is OEM-fitted on Sany cranes, among others. With DC and AC versions, the DT04-2P connection, and the Crane Light Director, we tailor optics, voltage, and mounting to the machine architecture.
CE, IEC 60598, EN 55015, EN 61547 and the EMC Directive. IEC 60598 covers construction, electrical safety, and thermal behavior. Configurations for North America are available upon request.
Tell us about the application, the location, and the scope of the project. We'll help you choose the design, the finish, and the mounting hardware.
You will receive a response from the person who is also preparing your lighting calculation.
We use your information solely to review your request and respond to it.
