Linear Industrial LED Lighting

A moulded luminaire where others supply a tube with end caps: up to 25,600 lumens at 213 lm/W, IP69K, in four lengths from 300 to 1,200 mm.

Most linear fixtures for wet or industrial areas consist of a plastic tube with two end caps. This design works well until it is subjected to impact, vibration, heat, or a high-pressure cleaning nozzle: at that point, the seam between the tube and the cap becomes the weak link. The Linear features a die-cast aluminum housing that holds the optics, the seal, and the electronics, as well as a solid copper-core circuit board that dissipates heat. Also available in an HT version rated up to +120 °C, for climate chambers, drying chambers, and hot production areas.

Response within 1 business day by an engineer. Free lighting calculation and trial luminaire possible.

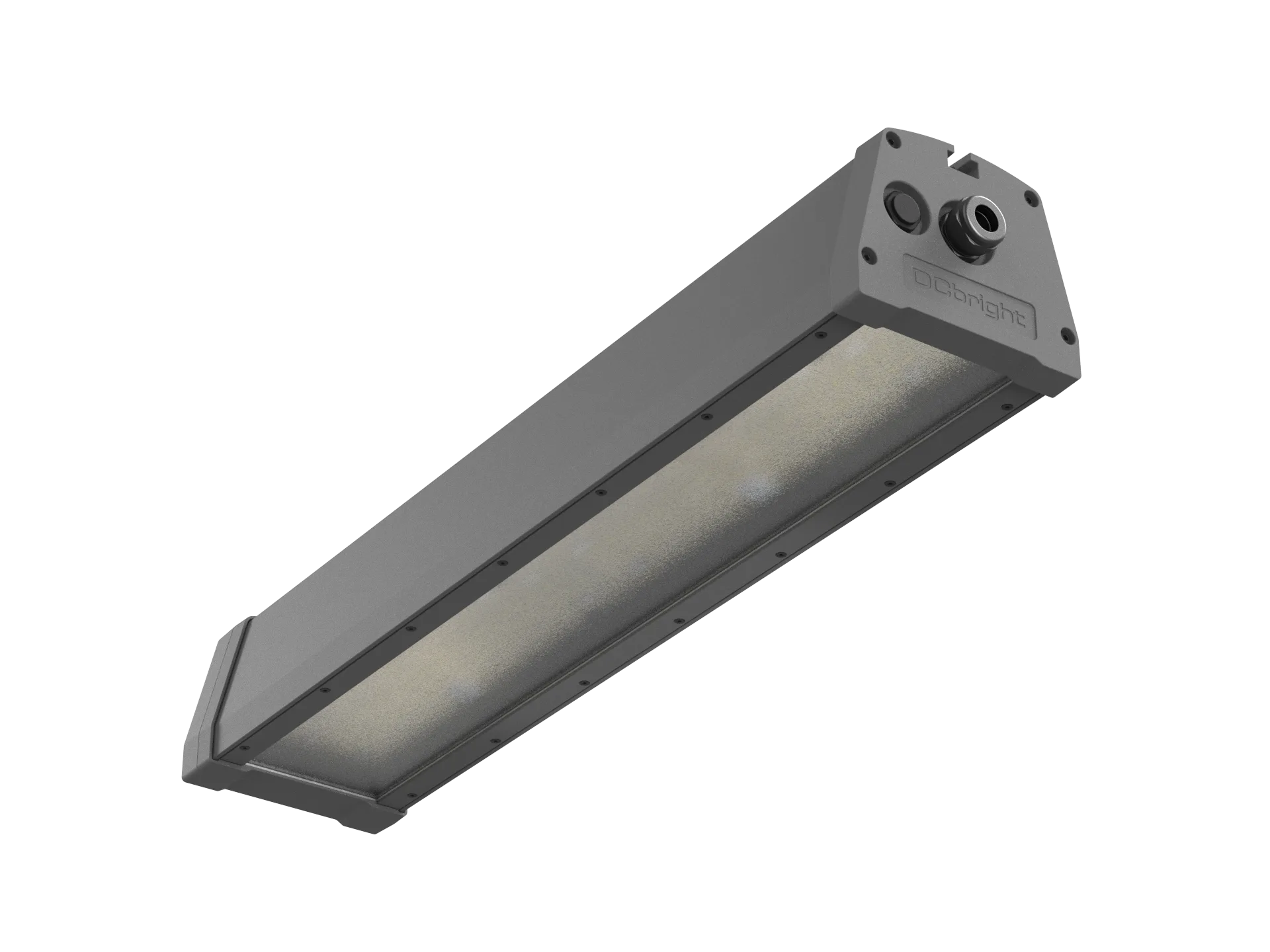

HT version 900 mm, Titanium Light Grey.

Luminous flux

25,600 lm

120 W at 1,200 mm, 213 lm/W

Protection

IP69K

including the junction box

Impact Resistance

IK08

IK09 with diffuse impact-resistant glass

Lengths

300, 600, 900, and 1,200 mm

Warranty

5 years

limited, under heavy industrial use

Temperature

+120 °C

from −45 °C to +120 °C with the HT-AC

Versions Specifications Optics Construction Downloads FAQ

Decision Aid

When should you choose the Linear?

An IP69K rating says something about dust and water, but nothing about mechanical strength, thermal design, or lifespan under load. That is the difference with a tubular fixture.

a linear light pattern is needed along a machine, a process line or a work zone
Cleaned daily with water or a high-pressure washer: IP69K, including the junction box
If the ambient temperature exceeds +50 °C: use the HT version, rated up to +120 °C
The luminaire must withstand vibration or mechanical stress
The position is difficult to reach and a breakdown means a stop
When operated on DC voltage: 12 to 24 volts DC is available
Energy consumption matters: 213 lm/W is the highest efficiency in our product line

When another luminaire fits better

Where that load is not present, you are paying for something you do not need. We would rather say so in advance.

A standard warehouse or suspended ceiling luminaire suffices
If the environment is dry, clean and temperate, a tubular light luminaire is cheaper
If a distance needs to be bridged: then a floodlight like the Barracuda logical
An entire site needs to be illuminated without light pollution: then DarkLicht
a distant spot or beam is needed in a hot zone: then Orca, Barracuda, or Snapper HT
If you need lighting under an awning or canopy, then the Manta canopy
ATEX or Ex certification is required: the Linear does not have that

Versions

Four versions, four lengths

All versions share the same cross-section of 134 × 102 mm and the same cast housing. What differs is the power supply, the driver position, the circuit board, and the temperature limit.

Linear AC

6,400 – 25,600 lm

The standard version operates on mains power, 90 to 305 VAC, with the driver built into the fixture. 30 to 120 W at 213 lm/W, up to +50 °C.

LIN-30 · LIN-60 · LIN-90 · LIN-120

Linear DC

5,600 – 22,300 lm

For 12 to 24 volts: Connect directly to a machine controller or a 24-volt system. 186 lm/W. For 12 volts, check the cable gauge.

LIN-30 · LIN-60 · LIN-90 · LIN-120

Linear HT, AC

6,400 – 25,600 lm total +120 °C

Heat-resistant SiHF-OB cable, IR-reflective gold coating on the circuit board, and an external driver located outside the hot zone. Peaks up to +130 °C.

Linear HT, DC

3,900 – 15,600 lm up to +110 °C

12 to 24 volts in a hot zone, 22 to 88 W at 177 lm/W. Lifespan specified per ambient temperature; warranty up to +110 °C.

LVHT-30 through LVHT-120

Product family

The role of the Linear within the program

The Linear illuminates a strip of area directly below it. Whether you're looking to light a canopy, a distance, or an entire site, the answer lies elsewhere in the product line.

Luminaire	Role in the range	Mounting position
Linear 25,600 lumens	Linear lighting along machines, production lines, and work areas. Die-cast housing, IP69K, also rated for temperatures up to +120 °C.	ceiling, wall and machine
Manta canopy 22,400 lumens	The canopy for use under an awning or canopy, with brightness adjustable for each position via NFC.	ceiling and awning
Barracuda 44,100 lumens	Floodlight for use when covering long distances, also available in a high-voltage version.	mast and structure
DarkLicht D 34,200 lumens	Full-cut-off floodlight for outdoor areas and parking lots where light pollution must be actively minimized.	mast and facade

Specifications

Choose the version and the length

Four models and four lengths, sixteen combinations. With AC and DC, the driver is built into the fixture; with the HT model, it is located externally, outside the hot zone. Select both options below, and the list of specifications will update accordingly.

Item number

LIN-30

The standard version for AC power, with the driver inside the fixture.

6,400 lm

Light

Luminous flux	6,400 lm
Power consumption	30 W
Efficiency	213 lm/W
Beam angles	30°, 60°, 90°, 120°
Color temperatures	6500K, 5000K, 4000K, 3000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	90 to 305 VAC
Current draw	approx. 0.13 to 0.11 A at 220 to 277 V
Driver	internal
Connection	IP69K junction box
Cable type	H07BQ-F
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	solid copper core
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Black
Dimensions	134 × 102 × 350 mm
Weight	3.45 kg
Lead time	Standard within a week, custom by arrangement
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05, 360,000 hours
Warranty	5 years on the complete luminaire
Certification	CE, ENEC, IEC 60598, EMC
Item number	LIN-30
HS code	9405500090

Item number

LIN-60

The standard version for AC power, with the driver inside the fixture.

12,800 lm

Light

Luminous flux	12,800 lm
Power consumption	60 W
Efficiency	213 lm/W
Beam angles	30°, 60°, 90°, 120°
Color temperatures	6500K, 5000K, 4000K, 3000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	90 to 305 VAC
Current draw	approx. 0.26 to 0.22 A at 220 to 277 V
Driver	internal
Connection	IP69K junction box
Cable type	H07BQ-F
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	solid copper core
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Black
Dimensions	134 × 102 × 650 mm
Weight	5.05 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05, 360,000 hours
Warranty	5 years on the complete luminaire
Certification	CE, ENEC, IEC 60598, EMC
Item number	LIN-60
HS code	9405500090

Item number

LIN-90

The standard version for AC power, with the driver inside the fixture.

19,200 lm

Light

Luminous flux	19,200 lm
Power consumption	90 W
Efficiency	213 lm/W
Beam angles	30°, 60°, 90°, 120°
Color temperatures	6500K, 5000K, 4000K, 3000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	90 to 305 VAC
Current draw	approx. 0.41 to 0.32 A at 220 to 277 V
Driver	internal
Connection	IP69K junction box
Cable type	H07BQ-F
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	solid copper core
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Black
Dimensions	134 × 102 × 950 mm
Weight	6.8 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05, 360,000 hours
Warranty	5 years on the complete luminaire
Certification	CE, ENEC, IEC 60598, EMC
Item number	LIN-90
HS code	9405500090

Item number

LIN-120

The standard version for AC power, with the driver inside the fixture.

25,600 lm

Light

Luminous flux	25,600 lm
Power consumption	120 W
Efficiency	213 lm/W
Beam angles	30°, 60°, 90°, 120°
Color temperatures	6500K, 5000K, 4000K, 3000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	90 to 305 VAC
Current draw	Approx. 0.52 to 0.44 A at 220 to 277 V
Driver	internal
Connection	IP69K junction box
Cable type	H07BQ-F
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	solid copper core
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Black
Dimensions	134 × 102 × 1250 mm
Weight	8.4 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05, 360,000 hours
Warranty	5 years on the complete luminaire
Certification	CE, ENEC, IEC 60598, EMC
Item number	LIN-120
HS code	9405500090

Item number

LIN-30

The DC power supply for machines, OEMs, and 24-volt systems.

5,600 lm

Light

Luminous flux	5,600 lm
Power consumption	30 W
Efficiency	186 lm/W
Beam angles	30°, 60°, 90°, 120°
Color temperatures	6500K, 5000K, 4000K, 3000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	12 to 24 VDC
Current draw	approx. 1.25 A at 24 V, 2.5 A at 12 V
Driver	internal
Connection	IP69K junction box
Cable type	H07BQ-F
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	solid copper core
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Black
Dimensions	134 × 102 × 350 mm
Weight	3.45 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05, 360,000 hours
Warranty	5 years on the complete luminaire
Certification	CE, ENEC, IEC 60598, EMC
Item number	LIN-30
HS code	9405500090

Item number

LIN-60

The DC power supply for machines, OEMs, and 24-volt systems.

11,200 lm

Light

Luminous flux	11,200 lm
Power consumption	60 W
Efficiency	186 lm/W
Beam angles	30°, 60°, 90°, 120°
Color temperatures	6500K, 5000K, 4000K, 3000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	12 to 24 VDC
Current draw	approx. 2.5 A at 24 V, 5.0 A at 12 V
Driver	internal
Connection	IP69K junction box
Cable type	H07BQ-F
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	solid copper core
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Black
Dimensions	134 × 102 × 650 mm
Weight	5.05 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05, 360,000 hours
Warranty	5 years on the complete luminaire
Certification	CE, ENEC, IEC 60598, EMC
Item number	LIN-60
HS code	9405500090

Item number

LIN-90

The DC power supply for machines, OEMs, and 24-volt systems.

16,700 lm

Light

Luminous flux	16,700 lm
Power consumption	90 W
Efficiency	186 lm/W
Beam angles	30°, 60°, 90°, 120°
Color temperatures	6500K, 5000K, 4000K, 3000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	12 to 24 VDC
Current draw	approx. 3.75 A at 24 V, 7.5 A at 12 V
Driver	internal
Connection	IP69K junction box
Cable type	H07BQ-F
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	solid copper core
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Black
Dimensions	134 × 102 × 950 mm
Weight	6.8 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05, 360,000 hours
Warranty	5 years on the complete luminaire
Certification	CE, ENEC, IEC 60598, EMC
Item number	LIN-90
HS code	9405500090

Item number

LIN-120

The DC power supply for machines, OEMs, and 24-volt systems.

22,300 lm

Light

Luminous flux	22,300 lm
Power consumption	120 W
Efficiency	186 lm/W
Beam angles	30°, 60°, 90°, 120°
Color temperatures	6500K, 5000K, 4000K, 3000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	12 to 24 VDC
Current draw	approx. 5.0 A at 24 V, 10.0 A at 12 V
Driver	internal
Connection	IP69K junction box
Cable type	H07BQ-F
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	solid copper core
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Black
Dimensions	134 × 102 × 1250 mm
Weight	8.4 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05, 360,000 hours
Warranty	5 years on the complete luminaire
Certification	CE, ENEC, IEC 60598, EMC
Item number	LIN-120
HS code	9405500090

Item number

LVHT-30

The high-temperature mains-powered version, with the driver outside the hot zone.

6,400 lm

Light

Luminous flux	6,400 lm
Power consumption	30 W
Efficiency	213 lm/W
Beam angles	20°, 40°, 60°, 120°
Color temperatures	6500K, 4000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	90 to 305 VAC
Current draw	approx. 0.13 to 0.11 A at 220 to 277 V
Driver	external, outside the zone
Connection	IP69K junction box
Cable type	SiHF-OB, heat-resistant
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	copper core with an IR gold coating
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Light Gray
Dimensions	134 × 102 × 350 mm
Weight	2.8 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +120 °C
LED lifespan	TM-21 L90B05, 360,000 hours at +50 °C
Warranty	5 years to +120 °C
Certification	CE, ENEC, IEC 60598, EMC
Item number	LVHT-30
HS code	9405500090

Item number

LVHT-60

The high-temperature mains-powered version, with the driver outside the hot zone.

12,800 lm

Light

Luminous flux	12,800 lm
Power consumption	60 W
Efficiency	213 lm/W
Beam angles	20°, 40°, 60°, 120°
Color temperatures	6500K, 4000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	90 to 305 VAC
Current draw	approx. 0.26 to 0.22 A at 220 to 277 V
Driver	external, outside the zone
Connection	IP69K junction box
Cable type	SiHF-OB, heat-resistant
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	copper core with an IR gold coating
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Light Gray
Dimensions	134 × 102 × 650 mm
Weight	4.4 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +120 °C
LED lifespan	TM-21 L90B05, 360,000 hours at +50 °C
Warranty	5 years to +120 °C
Certification	CE, ENEC, IEC 60598, EMC
Item number	LVHT-60
HS code	9405500090

Item number

LVHT-90

The high-temperature mains-powered version, with the driver outside the hot zone.

19,200 lm

Light

Luminous flux	19,200 lm
Power consumption	90 W
Efficiency	213 lm/W
Beam angles	20°, 40°, 60°, 120°
Color temperatures	6500K, 4000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	90 to 305 VAC
Current draw	approx. 0.41 to 0.32 A at 220 to 277 V
Driver	external, outside the zone
Connection	IP69K junction box
Cable type	SiHF-OB, heat-resistant
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	copper core with an IR gold coating
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Light Gray
Dimensions	134 × 102 × 950 mm
Weight	6.0 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +120 °C
LED lifespan	TM-21 L90B05, 360,000 hours at +50 °C
Warranty	5 years to +120 °C
Certification	CE, ENEC, IEC 60598, EMC
Item number	LVHT-90
HS code	9405500090

Item number

LVHT-120

The high-temperature mains-powered version, with the driver outside the hot zone.

25,600 lm

Light

Luminous flux	25,600 lm
Power consumption	120 W
Efficiency	213 lm/W
Beam angles	20°, 40°, 60°, 120°
Color temperatures	6500K, 4000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	90 to 305 VAC
Current draw	Approx. 0.52 to 0.44 A at 220 to 277 V
Driver	external, outside the zone
Connection	IP69K junction box
Cable type	SiHF-OB, heat-resistant
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	copper core with an IR gold coating
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Light Gray
Dimensions	134 × 102 × 1250 mm
Weight	7.6 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +120 °C
LED lifespan	TM-21 L90B05, 360,000 hours at +50 °C
Warranty	5 years to +120 °C
Certification	CE, ENEC, IEC 60598, EMC
Item number	LVHT-120
HS code	9405500090

Item number

LVHT-30

The high-temperature DC version, for machines in a hot zone.

3,900 lm

Light

Luminous flux	3,900 lm
Power consumption	22 W
Efficiency	177 lm/W
Beam angles	20°, 40°, 60°, 120°
Color temperatures	6500K, 4000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	12 to 24 VDC
Current draw	approx. 0.92 A at 24 V, 1.84 A at 12 V
Driver	external, outside the zone
Connection	IP69K junction box
Cable type	SiHF-OB, heat-resistant
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	copper core with an IR gold coating
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Light Gray
Dimensions	134 × 102 × 350 mm
Weight	2.8 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +110 °C
LED lifespan	TM-21 L90B05, 360,000 hours at +50 °C · 103,000 at +85 °C · 90,700 at +105 °C · 51,400 at +120 °C
Warranty	5 years to +110 °C
Certification	CE, ENEC, IEC 60598, EMC
Item number	LVHT-30
HS code	9405500090

Item number

LVHT-60

The high-temperature DC version, for machines in a hot zone.

7,800 lm

Light

Luminous flux	7,800 lm
Power consumption	44 W
Efficiency	177 lm/W
Beam angles	20°, 40°, 60°, 120°
Color temperatures	6500K, 4000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	12 to 24 VDC
Current draw	approx. 1.83 A at 24 V, 3.7 A at 12 V
Driver	external, outside the zone
Connection	IP69K junction box
Cable type	SiHF-OB, heat-resistant
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	copper core with an IR gold coating
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Light Gray
Dimensions	134 × 102 × 650 mm
Weight	4.4 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +110 °C
LED lifespan	TM-21 L90B05, 360,000 hours at +50 °C · 103,000 at +85 °C · 90,700 at +105 °C · 51,400 at +120 °C
Warranty	5 years to +110 °C
Certification	CE, ENEC, IEC 60598, EMC
Item number	LVHT-60
HS code	9405500090

Item number

LVHT-90

The high-temperature DC version, for machines in a hot zone.

11,700 lm

Light

Luminous flux	11,700 lm
Power consumption	66 W
Efficiency	177 lm/W
Beam angles	20°, 40°, 60°, 120°
Color temperatures	6500K, 4000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	12 to 24 VDC
Current draw	approx. 2.8 A at 24 V, 5.5 A at 12 V
Driver	external, outside the zone
Connection	IP69K junction box
Cable type	SiHF-OB, heat-resistant
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	copper core with an IR gold coating
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Light Gray
Dimensions	134 × 102 × 950 mm
Weight	6.0 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +110 °C
LED lifespan	TM-21 L90B05, 360,000 hours at +50 °C · 103,000 at +85 °C · 90,700 at +105 °C · 51,400 at +120 °C
Warranty	5 years to +110 °C
Certification	CE, ENEC, IEC 60598, EMC
Item number	LVHT-90
HS code	9405500090

Item number

LVHT-120

The high-temperature DC version, for machines in a hot zone.

15,600 lm

Light

Luminous flux	15,600 lm
Power consumption	88 W
Efficiency	177 lm/W
Beam angles	20°, 40°, 60°, 120°
Color temperatures	6500K, 4000K, 2700K, amber 2200K
Bi-color	cool white with amber
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam ellipse

Electric

Voltage range	12 to 24 VDC
Current draw	approx. 3.7 A at 24 V, 7.4 A at 12 V
Driver	external, outside the zone
Connection	IP69K junction box
Cable type	SiHF-OB, heat-resistant
Inrush current	on request
Surge protection	Stable up to 75 V, 3,000 to 6,000 A smoothing within 8/20 µs

Construction

Housing	cast aluminum, < 0.08 % copper
Bracket	aluminum, < 0.08 % copper
Circuit board	copper core with an IR gold coating
Front	diffused glass IK09 or borosilicate IK08
Color	Titanium Light Gray
Dimensions	134 × 102 × 1250 mm
Weight	7.6 kg
Angle setting	0° to 45°, seven locked positions

Protection and durability

IP and IK	IP69K / IK09
Operating temperature	−45 to +110 °C
LED lifespan	TM-21 L90B05, 360,000 hours at +50 °C · 103,000 at +85 °C · 90,700 at +105 °C · 51,400 at +120 °C
Warranty	5 years to +110 °C
Certification	CE, ENEC, IEC 60598, EMC
Item number	LVHT-120
HS code	9405500090

Direct download, no form. With dimension drawing per length and order code.

For the installer

Connect and integrate into the installation

The connection is made via an IP69K junction box with H07BQ-F cable; for the HT version, this is heat-resistant SiHF-OB. In the case of trunking lighting, the cable entry point is where things tend to go wrong in practice.

Connection

IP69K box

same class as the luminaire

Voltage range

90–305 VAC

from 12 to 24 VDC

Driver position

internal

at the external HT, outside the zone

Angle setting

up to 180°

in steps of 30°

Circuit loading and voltage drop

The luminaire can be tilted in 30-degree increments up to 180 degrees, allowing the beam to be directed at the machine or the direction of travel. How many luminaires fit on a single circuit breaker depends on the length, version, voltage, and cable route: with a long row of luminaires along a machine, the voltage drop is usually the limiting factor, not the breaker.

At 12 volts, pay attention to the cable cross-section: the current doubles compared to 24 volts, up to 10 amperes for the 120-watt version. Provide the quantity, length, and cable route, and we will calculate it for you within the lighting advice and the installation calculation. The inrush current is available upon request.

Overvoltage and protection

Electronics stable up to 75 V; above that, 3,000 to 6,000 A is drawn to flatten the peak
Within 8/20 µs, response speed 1,000 V/µs
Transient protection on the connection wires
Inrush current limiter and short-circuit protection
CE, ENEC, IEC 60598 and EMC certification
HS code of the luminaires 9405500090

Optics

Beam angles per version

The standard versions are available with 30°, 60°, 90° or 120°; the HT series with 20°, 40°, 60° or 120°. The angle determines whether the light falls on the machine or on the floor next to it. If you are in doubt, we will substantiate the choice with a free lighting calculation.

20° and 30°

Narrow distribution: 30° for standard versions, 20° for the HT series. For high mounting or targeted illumination of a machine part.

40° and 60°

The center distribution along a process line or walkway: light on the machine, less on the adjacent floor.

90°

Wide distribution for standard versions, at lower mounting heights in a hall or technical room.

120°

Very wide, also available in the HT series. For low ceilings, hallways, and narrow zones close to the floor.

Version	Beam angles	Color temperatures	Application
Linear AC	30°, 60°, 90°, 120°	6500K to 2700K, amber 2200K	Power supply, up to +50 °C. Hall, process line, wet zone.
Linear DC	30°, 60°, 90°, 120°	6500K to 2700K, amber 2200K	12 to 24 volts, for machines and OEM applications.
Linear HT, AC	20°, 40°, 60°, 120°	6500K, 4000K, 2700K, amber 2200K	Hot zones up to +120 °C, driver outside the zone.
Linear HT, DC	20°, 40°, 60°, 120°	6500K, 4000K, 2700K, amber 2200K	Hot zones up to +110 °C on direct current.

Bicolor cool white with amber is available. CRI > 70, optional 80 or 90, color consistency MacAdam step 3. The color temperature and optics are specified separately upon ordering.

Construction

The seam between tube and end cap does not exist here

In a tubular luminaire, the plastic tube itself carries the structure and the seals are located in two end caps. That is the place where moisture enters after a few years of cleaning, and the place that fails upon impact or vibration. The Linear reverses this: the cast aluminum housing carries everything, and the seal is located within the casting.

Solid copper core printed circuit board, in the HT version with an IR-reflective gold coating. This way, 213 lm/W is maintained even when the environment gets warm.

See the application under high temperature lighting, heavy industry and extreme heat and the photo gallery.

Protection

IP69K

with IP69K junction box

Lengths

300, 600, 900, and 1,200 mm

High temperature

In heat, lifespan is not a number but a curve

A luminaire that is “suitable up to +120 °C” does not achieve the same lifespan there as it does at +50 °C. We do not conceal this: shown opposite is the specification per ambient temperature for the HT version. At +50 °C this is 360,000 hours, at +120 °C still 51,400 hours, which is over fourteen years at ten operating hours per day.

That is why we always evaluate a high-temperature application at the project level. Not only the ambient temperature matters, but also radiant heat, airflow around the luminaire, the mounting position, the operating time, and the location of the driver. In the HT version, that driver is deliberately located outside the hot zone. The AC version is guaranteed up to +120 °C with brief peaks up to +130 °C; the DC version up to +110 °C.

Please note

The HT version is not a universal solution for every hot environment. Radiant heat, peak temperatures, and chemical exposure can change the choice. Submit the situation before ordering.

Ambient Temperature	Service Life L90B05
+50 °C	360,000 hours
+85 °C	103,000 hours
+105 °C	90,700 hours
+120 °C	51,400 hours

Specification for the DC HT version, measured according to TM-21 and reported as L90B05, matching the rest of the range. See also High-temperature lighting.

Applications

Where the Linear Does Its Job

Long, narrow zones where cleaning, heat, or vibration stress the luminaire.

Paper and process industry

Along a paper machine or process line, a linear light pattern is the only thing that fits: the zone is long and narrow, and the fixtures hang close to the machine.

Check paper machine lighting

Food and Wet Areas

Daily cleaning with hot water, foam, and disinfectant is harder on a luminaire than the weather outside. IP69K and a seamless molded housing are the reasons for this choice.

Check lighting in extreme corrosion

Climate and drying chambers

In a drying tunnel or climatic chamber, heat, vapor, and cleaning come together. The HT version operates up to +120 °C, with the driver outside the zone.

View high temperature lighting

Machines, OEM, and Retrofit

For machine builders who supply lighting as part of the machine, and for retrofits where an existing fixture does not hold up. The DC version connects directly to the machine control system.

View engineering and custom work

Dimensioning

All versions share the same cross-section of 134 × 102 mm; only the length and weight differ. The drawing opposite follows the length you chose in the specifications.

Views with dimensions. Drawing not to scale.

Length	Dimensions	Weight
300 mm	134 × 102 × 350 mm	3.45 kg
600 mm	134 × 102 × 650 mm	5.05 kg
900 mm	134 × 102 × 950 mm	6.8 kg
1,200 mm	134 × 102 × 1250 mm	8.4 kg

Dimensions in mm, width × height × length. The connection is made via an IP69K junction box, so that the cable entry maintains the same degree of protection as the luminaire itself. The dimensional drawing per length is also in the datasheet; DXF and STEP are available upon request.

Evidence

Tested, not promised

Every claim carries its condition in the same sentence. You can read more about the test methods at Product Quality and Warranty.

Cleaning · IP69K

High-pressure lance

The luminaire is IP69K, including the junction box to which it is connected, so the cable entry maintains the same degree of protection as the housing. With continuous row lighting, that is the point where things tend to go wrong in practice.

Lifespan · TM-21

360,000 hours

L90B05 at +50 °C: at that point, at least 95 % of the fixtures will still deliver at least 90 % of their initial light output. For the HT, the specified lifespan is reduced to 51,400 hours at +120 °C.

Overvoltage

3,000–6,000 A

The electronics remain stable up to 75 V; above that, 3,000 to 6,000 A is drawn to flatten the peak, within 8/20 µs with a response speed of 1,000 V/µs, with transil protection on the connecting wires.

Downloads

Data Sheet

The full specification per version and length, including dimensional drawing and order code. Direct download, without a form.

3D file

STEP or DXF for your own drawing work, per length, including the mounting pattern of the bracket.

Photometric files

All 24 versions and optics of the Linear in EULUMDAT (.ldt) format, all bundled into a single 2.5 MB ZIP file. DIALux and Relux can open these files directly. The part number is included in the file name and within the file itself. We provide IES files upon request.

Manual

Installation, wiring, mounting, maintenance and fault finding for the Linear Series in one document of 38 pages, Rev. 1. Download directly in the language of this page.

Also in: Nederlands · English · Deutsch · Français · Español

FAQ

Frequently Asked Questions about the Linear

Can't find your question, or would you like something calculated? Call us and we will go through your situation in five minutes. An engineer will respond within 1 business day.

+31 33 785 9809

What standards and certifications does the Linear have?

CE, ENEC and IEC 60598. ENEC is a voluntary European product safety certification tested by an independent third party that goes beyond the mandatory CE marking; IEC 60598 sets requirements for construction, electrical safety and thermal behavior. The corresponding emission and immunity standards apply to EMC. For specific project requirements, we assess the certification status per application.

Does this luminaire have a type approval from a classification society?

No. There is no type approval from DNV, Lloyd’s, Bureau Veritas, or any other classification society. If your client or specifications require this, we prefer to state that in advance and provide the substantiation that is available.

What surge protection does this luminaire have?

The electronics remain stable up to 75 volts; above that, 3,000 to 6,000 amperes are drawn to flatten the peak, within 8/20 µs with a response speed of 1,000 V/µs. In addition, there is transil protection on the connection wires, an inrush current limiter, and short-circuit protection.

How many luminaires can I connect to a single circuit breaker?

That depends on the length, the design, the voltage, and the cable route. With a long run of luminaires along a machine, the voltage drop is usually the limiting factor, not the circuit breaker. Provide the quantity, length, and cable route, and we will calculate it for you.

What is the article number and how is the ordering code structured?

The type designation is LIN for the standard version and LVHT for the high-temperature version, followed by the wattage: LIN-30 up to and including LIN-120 and LVHT-30 up to and including LVHT-120. The color temperature and optics are specified separately when ordering. The HS code of the luminaires is 9405500090.

What is the difference compared to a standard IP69K tubular light luminaire?

IP69K says something about dust, water, and high-pressure cleaning, but nothing about mechanical strength or thermal behavior. Most IP69K linear luminaires are a plastic or polycarbonate tube with end caps; that seam is the weak spot during impact, vibration, and years of cleaning. The Linear has a cast aluminum housing that supports the construction and keeps the seal inside the casting.

When do I choose the HT version?

As soon as the ambient temperature structurally exceeds +50 °C: climate chambers, drying chambers, hot production zones, paper machines, and test setups. The HT version operates up to +120 °C, features a heat-resistant silicone cable, an IR-reflecting gold coating on the circuit board, and an external driver outside the hot zone.

Why is the driver external on the HT version?

Drivers are more sensitive to heat than the LED module itself. In a hot zone, the driver is the component that fails first. By placing it outside the zone, the thermal load decreases and maintenance is possible without entering the hot space.

How long does the HT version last at high temperature?

That depends on the temperature, and we prefer to write that down rather than giving a single number. Measured according to TM-21 and reported as L90B05: 360,000 hours at +50 °C, 103,000 hours at +85 °C, 90,700 hours at +105 °C, and 51,400 hours at +120 °C. Even that last value is still well over fourteen years at ten burning hours per day.

What length should I choose?

The length follows from the zone, not from the lumen target. For a machine or a walkway, the rule is: rather multiple short luminaires with equal spacing than one long one with shadow areas next to it. We calculate the layout and return the number, length, and optics.

Is the Linear resistant to cleaning with a high-pressure lance?

Yes. The luminaire is IP69K, including the junction box to which it is connected, so the cable entry maintains the same degree of protection as the housing. With continuous row lighting, that is the point where things tend to go wrong in practice.

Is the Linear suitable for food processing?

It is suitable for wet and cleanable industrial zones. If hygienic requirements such as EHEDG or specific material specifications apply, we evaluate this on a project-by-project basis: cleaning, temperature, material, and certification together determine the execution.

Does the Linear work on 12 volts?

Yes, the DC version operates from 12 to 24 volts. At 12 volts, the current doubles compared to 24 volts, up to 10 amperes for the 120-watt version. Therefore, please pay attention to the cable cross-section along the length of the installation; we will calculate the voltage drop upon request.

Is the Linear ATEX or Ex-certified?

No. For areas at risk of explosion, a specific explosion-proof luminaire must be selected. The JEL Products does not have ATEX certification; we state this up front, even if it costs us the contract.

Can the Linear be mounted on a machine?

Yes, that is one of the common applications. The luminaire is tiltable per 30 degrees up to 180 degrees and is resistant to vibration. However, assess the mounting, cable entry, and maintenance access in advance; those three determine whether it will hold up on a machine.

Is the Linear suitable as a area lighting?

Usually not. A linear luminaire illuminates a strip of area directly below it; for an outdoor area or a pole, a floodlight or a full-cut-off floodlight makes more functional sense. For directed lighting at a distance in a high-temperature area, the Orca, Barracuda, or Snapper HT are the right choice.

What warranty applies?

Five years of heavy industrial use. For the HT versions, this period applies within the specified temperature range: up to +120 °C for the AC version, with short-term peaks up to +130 °C under specified conditions, and up to +110 °C for the DC version.

Request

Get your zone and temperature evaluated

Provide the length of the zone, the mounting height, the voltage, and the ambient temperature. We will determine the length, the quantity, the optics, and whether the HT version is required. If temperature is a concern, we will also look at radiant heat, airflow, and the location of the driver.

Lucas de Graaf

Technical Director, JEL Products

033-7859809

You will receive a response from the person who is also preparing your lighting calculation.

A reply within one working day, from an engineer
Evaluation luminaire without obligation at your own location
Four versions: AC, DC, HT-AC and HT-DC, in four lengths
5 years on the complete luminaire, HT-AC up to +120 °C and HT-DC up to +110 °C

Rather direct contact

+31 (0)33 785 9809

We respond within one working day. We deliver standard items within a week. Custom work, such as a different light colour, a different CRI or a bespoke version, by arrangement.

We use your data solely to evaluate your request and respond appropriately.
