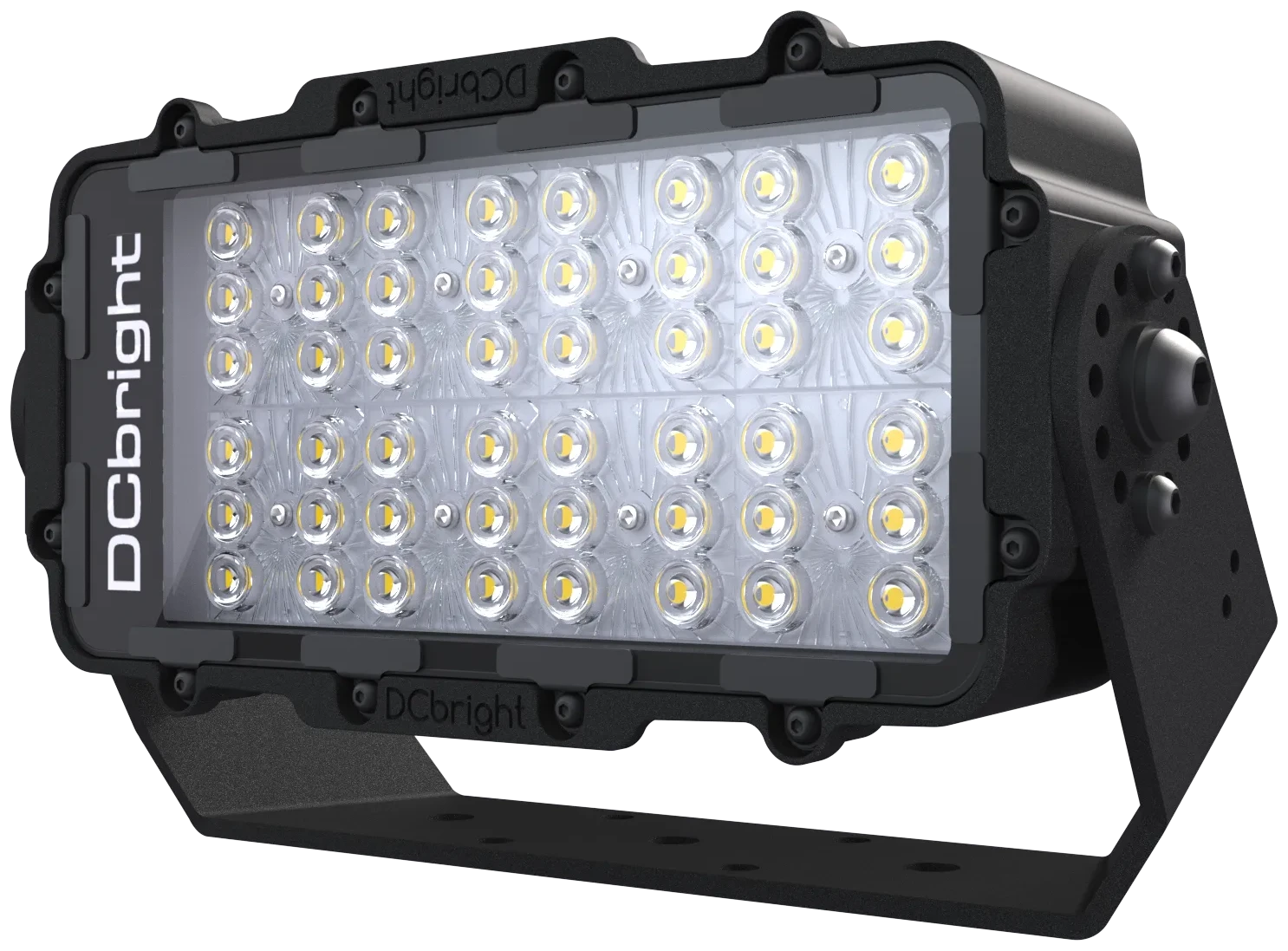

Snapper LED floodlight

Compact lightweight floodlight for cranes, machinery, and marine applications. Optionally available in 316L stainless steel or as a high-temperature version up to +120 °C.

Developed for positions where mounting space and load capacity are limited, but demands remain undiminished. Available in aluminum and 316L, in AC and DC, with one of the best lumen-per-kilogram ratios in the market.

Response within 1 business day by an engineer. Free lighting calculation and trial luminaire possible.

Aluminum finish, Titanium Black, with standard 316L bracket.

Luminous flux

31,000 lm

180 W, 172 lm/W

Protection

IP68

also IP66 and IP67, 316L also IP69K

Weight

3.1 kg

including 316L bracket

Trilling

6 G

at resonance, IEC 60068-2-6

Warranty

5 years

20 years on a 316L case

Temperature

+120 °C

from −45 °C to +120 °C with the HT

Versions Specifications Optics Mounting Downloads FAQ

Decision Aid

When should you choose the Snapper?

The luminaire is at its strongest where compactness, low weight, and reliable light output come together, on machines and structures where every kilogram counts.

Installation space or load capacity on the machine or structure is limited
High light output per kilo is the main requirement: 31,000 lumens from 3.1 kg
The luminaire must withstand continuous vibrations, weather conditions, and industrial use.
The light beam must be adjusted per position, with six optics and combinations
AC and DC occur within a single fleet
The environment is corrosive or reaches +120 °C

When another luminaire fits better

The Snapper is not intended for every task. Being clear about its limitations leads to a better end result.

Need more output or range per luminaire: then the Barracuda or the Shark
A maximum impact resistance rating of IK10 is a strict requirement; the Snapper has an IK08 rating: then the Marlin
One luminaire must span a large area or high mast position: then the Orca
Complete light blocking against light pollution is required: then DarkLicht
ATEX or Ex certification is required
A standard indoor luminaire for light applications will suffice

Versions

Four versions

Aluminum, 316L, high-temperature, or quantum-sealed: the differences lie in the material, the temperature limit, and the power supply. The same size delivers more output with the Snapper HC, up to 83,000 lumens.

Snapper AC and DC

25,000 – 31,000 lm

Cast aluminum with titanium e-coating and 316L bracket. AC up to 31,000 lm at 180 W, DC 24 V up to 25,000 lm for machine electrical systems.

SNAC01 · SNDC01

Snapper 316L

22,000 – 26,000 lm

Made entirely of 316L stainless steel, electrolytically polished, for marine, offshore, and chemical applications. Corrosion classes C5 and CX, 20-year warranty on the housing.

Snapper HT

7,000 lm total +120 °C

For oven zones, drying chambers, and process systems. 35 W, impact-resistant glass or borosilicate; the driver remains up to 25 meters outside the hot zone. Also available in 316L.

Snapper HT-CHEM

Quantum sealed, 7,000 lm

The high-temperature version with a quantum sealed 316L housing in Dark Black, for processes where heat and aggressive chemistry meet.

SNHT05

Product family

The Snapper's place within the product family

Five floodlights, increasing in output. The right choice depends on what the position requires: weight, range, or maximum lumens per housing.

Luminaire	Role in the range	Power	IP and IK	Weight
Marlin 18,000 lumens	The link between work lights and heavy-duty floodlights.	120 W	IP69K / IK10	5.5 kg
Snapper 31,000 lumens	The compact light-duty floodlight, with maximum lumens per weight.	150 to 180 W	IP68 / IK08	3.1 kg
Snapper HC 83,000 lumens	Two or three cast modules on a single bracket: maximum light per kilogram.	270 to 500 W	IP68 / IK08	12.6 kg
Barracuda 44,100 lumens	Most powerful compact floodlight, with more output and more range.	240 to 320 W	IP69K / IK10	10.1 kg
Shark 50,000 lumens	More efficient floodlight, with the lowest weight per lumen.	320 W	IP69K / IK10	9.2 kg
Orca 111,300 lumens	Heaviest floodlight, for the highest lumen output per housing.	800 W	IP69K / IK09	22.7 kg

Specifications

Full specification

Each Snapper is available in AC and DC versions. Select a version, and the complete list of specifications below will update accordingly: the standard Snapper, the 316L stainless steel version, the high-temperature versions, and the quantum-sealed HT-CHEM.

Item number

SNAC01-65K · also 50K, 40K, 30K and 22K

The aluminum version for power supply, featuring the best lumen-per-kilo ratio in the family. Programmable to a lower wattage via NFC.

31,000 lm

Light

Luminous flux	31,000 lm
Power consumption	180 W
Efficiency	172 lm/W
Optics	15° spot, 30°, 60°, 90°, 20° × 50° and 20° × 85°. Combinations possible.
Color temperatures	6500K, 5000K, 4000K, 2700K and amber 2200K
Bi-color	4000K with amber 2200K, switchable during operation
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam

Electric

Voltage range	90–305 VAC
Nominal voltage	Not applicable to AC
Current draw	approx. 0.8 A at 220 V · 1.7 A at 110 V
Dimming	0–10 V, PWM, and DALI-2, or via NFC
Driver	remote BLD240, can in DRB-1
Driver Type	BLD240, 240 W
Inrush current	66 A peak, T50 0.5 ms at 220 V
Luminaires per MCB	B16: 3 · C16: 6 · C25: 9 · D16: 10
Surge protection	6 kV line-to-line, 10 kV line-to-ground (IEC 61000-4-5)
Labor Factor and THD	> 0.95 at 60–100 % load, THD < 15 % at 65–100 %

Construction

Housing	cast aluminum, < 0.08 % copper
Surface treatment	conversion layer with 2-layer titanium e-coating
Bracket	High-tensile 316L stainless steel, ± 240° in 30° increments
Front	impact-resistant glass IK08
Color	Titanium Black
Dimensions	312 × 181 × 118 mm
Weight	3.1 kg, including bracket
Lead time	Standard within a week, custom by arrangement
Cable type	H07BQ-F, 4-wire (2 × 2.5 mm² + 2 × 0.5 mm²), 2.0 m
Connection	pre-assembled cable, loose wires
Accessories	Rear Mount Bracket · Crane Light Stabilizer

Protection and durability

IP Ratings	IP66, IP67 and IP68
Impact Resistance	IK08
Corrosion class	C5 Industrial and Maritime (ISO 9223)
Vibration class	6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05 > 360,000 hours
Driver lifespan	≥ 100,000 hours at Tc 75 °C, ≥ 130,000 hours at Tc 50 °C
MTBF driver	≥ 280,000 hours at Tc 75 °C (MIL-HDBK-217F)
Warranty	5 years on the complete luminaire
Certification	CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request.
Packaging	depending on quantity, upon request

Item number

SNDC01-65K · also 50K, 40K, 30K and 22K

Connects directly to the 24 V vehicle electrical system of machines and vehicles. The driver is located on the printed circuit board, eliminating the need for a separate driver position.

25,000 lm

Light

Luminous flux	25,000 lm
Power consumption	150 W
Efficiency	168 lm/W
Optics	15° spot, 30°, 60°, 90°, 20° × 50° and 20° × 85°. Combinations possible.
Color temperatures	6500K, 5000K, 4000K, 2700K and amber 2200K
Bi-color	4000K with amber 2200K, switchable during operation
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam

Electric

Voltage range	20–35 VDC
Nominal voltage	24 V
Current draw	approx. 6.3 A at 24 V
Dimming	custom work
Driver	DC driver circuit board
Driver Type	not applicable, driver on board
Inrush current	not applicable, driver on board
Luminaires per MCB	not applicable, driver on board
Surge protection	not applicable, driver on board
Labor Factor and THD	not applicable, driver on board

Construction

Housing	cast aluminum, < 0.08 % copper
Surface treatment	conversion layer with 2-layer titanium e-coating
Bracket	High-tensile 316L stainless steel, ± 240° in 30° increments
Front	impact-resistant glass IK08
Color	Titanium Black
Dimensions	312 × 181 × 118 mm
Weight	3.1 kg, including bracket
Cable type	H07BQ-F, 2 cores (2 × 2.5 mm²), 2.0 m
Connection	pre-assembled cable, loose wires
Accessories	Crane Light Stabilizer

Protection and durability

IP Ratings	IP66, IP67 and IP68
Impact Resistance	IK08
Corrosion class	C5 Industrial and Maritime (ISO 9223)
Vibration class	6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05 > 360,000 hours
Driver lifespan	not applicable
MTBF driver	not applicable, driver on board
Warranty	5 years on the complete luminaire
Certification	CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request.
Packaging	depending on quantity, upon request

Item number

SNSS01-65K · also 40K, 27K, 22K, and BIC

Made entirely of 316L, electrolytically polished, for marine, offshore, and chemical applications. Includes the JEL option set and IP69K rating.

26,000 linear meters

Light

Luminous flux	26,000 linear meters
Power consumption	180 W
Efficiency	144 lm/W
Optics	14° spot, 38°, 69°, 14° × 46° flare. Combinations possible.
Color temperatures	6500K, 5000K, 4000K, 2700K and amber 2200K
Bi-color	4000K with amber 2200K, switchable during operation
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam

Electric

Voltage range	90–305 VAC
Nominal voltage	Not applicable to AC
Current draw	approx. 0.8 A at 220 V · 1.7 A at 110 V
Dimming	0–10 V, PWM, and DALI-2, or via NFC
Driver	remote BLD240, can in DRB-1
Driver Type	BLD240, 240 W
Inrush current	66 A peak, T50 0.5 ms at 220 V
Luminaires per MCB	B16: 3 · C16: 6 · C25: 9 · D16: 10
Surge protection	6 kV line-to-line, 10 kV line-to-ground (IEC 61000-4-5)
Labor Factor and THD	> 0.95 at 60–100 % load, THD < 15 % at 65–100 %

Construction

Housing	316L stainless steel
Surface treatment	electrolytically polished
Bracket	High-tensile 316L stainless steel, ± 240° in 30° increments
Front	impact-resistant glass IK08
Color	stainless steel
Dimensions	320 × 180 × 100 mm
Weight	7.0 kg, including bracket
Cable type	H07BQ-F, 4-wire (2 × 2.5 mm² + 2 × 0.5 mm²), 2.0 m
Connection	pre-assembled cable, loose wires
Accessories	316L rear-mount bracket

Protection and durability

IP Ratings	IP66, IP67, IP68 and IP69K
Impact Resistance	IK08
Corrosion class	C5 and CX (ISO 9223). 316L is CRC III according to EN 1993-1-4, PREN approximately 24
Vibration class	6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05 > 360,000 hours
Driver lifespan	≥ 100,000 hours at Tc 75 °C, ≥ 130,000 hours at Tc 50 °C
MTBF driver	≥ 280,000 hours at Tc 75 °C (MIL-HDBK-217F)
Warranty	20-year warranty on the housing, 5-year warranty on all other parts
Certification	CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request.
Packaging	depending on quantity, upon request

Item number

SNSS02-65K · also 40K, 27K, 22K, and BIC

The 316L version for the 24V on-board power system, for marine vessels and equipment in corrosive environments.

22,000 lm

Light

Luminous flux	22,000 lm
Power consumption	150 W
Efficiency	147 lm/W
Optics	14° spot, 38°, 69°, 14° × 46° flare. Combinations possible.
Color temperatures	6500K, 5000K, 4000K, 2700K and amber 2200K
Bi-color	4000K with amber 2200K, switchable during operation
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam

Electric

Voltage range	20–35 VDC
Nominal voltage	24 V
Current draw	approx. 6.3 A at 24 V
Dimming	custom work
Driver	DC driver circuit board
Driver Type	not applicable, driver on board
Inrush current	not applicable, driver on board
Luminaires per MCB	not applicable, driver on board
Surge protection	not applicable, driver on board
Labor Factor and THD	not applicable, driver on board

Construction

Housing	316L stainless steel
Surface treatment	electrolytically polished
Bracket	High-tensile 316L stainless steel, ± 240° in 30° increments
Front	impact-resistant glass IK08
Color	stainless steel
Dimensions	320 × 180 × 100 mm
Weight	7.0 kg, including bracket
Cable type	H07BQ-F, 2 cores (2 × 2.5 mm²), 2.0 m
Connection	pre-assembled cable, loose wires
Accessories	No separate accessory included with this model

Protection and durability

IP Ratings	IP66, IP67, IP68 and IP69K
Impact Resistance	IK08
Corrosion class	C5 and CX (ISO 9223). 316L is CRC III according to EN 1993-1-4, PREN approximately 24
Vibration class	6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27
Operating temperature	−45 to +50 °C
LED lifespan	TM-21 L90B05 > 360,000 hours
Driver lifespan	not applicable
MTBF driver	not applicable, driver on board
Warranty	20-year warranty on the housing, 5-year warranty on all other parts
Certification	CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request.
Packaging	depending on quantity, upon request

Item number

SNHT01-65K · also 40K and 27K

For ambient temperatures up to +120 °C. The driver remains outside the hot zone thanks to the 25-meter heat-resistant cable.

7,000 lm

Light

Luminous flux	7,000 lm
Power consumption	35 W
Efficiency	200 lm/W
Optics	120° ultra-wide. HT optics are not available on the Snapper.
Color temperatures	6500K, 4000K, and 2700K
Bi-color	not available as standard from HT
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam

Electric

Voltage range	90–305 VAC
Nominal voltage	Not applicable to AC
Current draw	approx. 0.2 A at 220 V · 0.3 A at 110 V
Dimming	0–10 V, PWM, and DALI-2, or via NFC
Driver	remote BLD075, compatible with DRB-1
Driver Type	BLD075, 75 W
Inrush current	66 A peak, T50 170 µs at 220 V
Luminaires per MCB	B16: 11 · C16: 19 · C25: 30 · D16: 32
Surge protection	6 kV line-to-line, 10 kV line-to-ground (IEC 61000-4-5)
Labor Factor and THD	> 0.9 at 65–100 % load, THD < 15 % at 60–100 %

Construction

Housing	cast aluminum, < 0.08 % copper
Surface treatment	conversion layer with 2-layer titanium e-coating
Bracket	High-tensile 316L stainless steel, ± 240° in 30° increments
Front	impact-resistant glass or borosilicate IK08
Color	Titanium Light Gray
Dimensions	312 × 181 × 118 mm
Weight	3.1 kg, including bracket
Cable type	SiHF-OB heat-resistant, 4-conductor (2 × 1.0 mm² + 2 × 0.5 mm²), 25.0 m
Connection	pre-assembled cable, loose wires
Accessories	No separate accessory included with this model

Protection and durability

IP Ratings	IP66, IP67 and IP68
Impact Resistance	IK08
Corrosion class	C5 Industrial and Maritime (ISO 9223)
Vibration class	6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27
Operating temperature	−45 to +120 °C
LED lifespan	TM-21 L90B05: > 360,000 h at 50 °C · 103,000 h at 85 °C · 71,700 h at 105 °C · 51,400 h at 120 °C
Driver lifespan	≥ 100,000 hours at Tc 75 °C, ≥ 130,000 hours at Tc 50 °C
MTBF driver	≥ 320,000 hours at Tc 75 °C (MIL-HDBK-217F)
Warranty	5 years to +120 °C
Certification	CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request.
Packaging	depending on quantity, upon request

Item number

SNHT02-65K · also 40K and 27K

The high-temperature version for the 24 V vehicle electrical system, up to +110 °C.

7,000 lm

Light

Luminous flux	7,000 lm
Power consumption	35 W
Efficiency	200 lm/W
Optics	120° ultra-wide. HT optics are not available on the Snapper.
Color temperatures	6500K, 4000K, and 2700K
Bi-color	not available as standard from HT
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam

Electric

Voltage range	20–35 VDC
Nominal voltage	24 V
Current draw	approx. 1.5 A at 24 V
Dimming	custom work
Driver	DC driver circuit board
Driver Type	not applicable, driver on board
Inrush current	not applicable, driver on board
Luminaires per MCB	not applicable, driver on board
Surge protection	not applicable, driver on board
Labor Factor and THD	not applicable, driver on board

Construction

Housing	cast aluminum, < 0.08 % copper
Surface treatment	conversion layer with 2-layer titanium e-coating
Bracket	High-tensile 316L stainless steel, ± 240° in 30° increments
Front	impact-resistant glass or borosilicate IK08
Color	Titanium Light Gray
Dimensions	312 × 181 × 118 mm
Weight	3.1 kg, including bracket
Cable type	SiHF-OB heat-resistant, 2 conductors (2 × 1.0 mm²), 15.0 m
Connection	pre-assembled cable, loose wires
Accessories	No separate accessory included with this model

Protection and durability

IP Ratings	IP66, IP67 and IP68
Impact Resistance	IK08
Corrosion class	C5 Industrial and Maritime (ISO 9223)
Vibration class	6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27
Operating temperature	−45 to +110 °C
LED lifespan	TM-21 L90B05: > 360,000 h at 50 °C · 103,000 h at 85 °C · 71,700 h at 105 °C · 51,400 h at 120 °C
Driver lifespan	not applicable
MTBF driver	not applicable, driver on board
Warranty	5 years to +110 °C
Certification	CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request.
Packaging	depending on quantity, upon request

Item number

SNHT03-65K · also 40K and 27K

The high-temperature version in a 316L housing, designed for both high-temperature and corrosive process environments.

7,000 lm

Light

Luminous flux	7,000 lm
Power consumption	35 W
Efficiency	200 lm/W
Optics	120° ultra-wide. HT optics are not available on the Snapper.
Color temperatures	6500K, 4000K, and 2700K
Bi-color	not available as standard from HT
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam

Electric

Voltage range	90–305 VAC
Nominal voltage	Not applicable to AC
Current draw	approx. 0.2 A at 220 V · 0.3 A at 110 V
Dimming	0–10 V, PWM, and DALI-2, or via NFC
Driver	remote BLD075, compatible with DRB-1
Driver Type	BLD075, 75 W
Inrush current	66 A peak, T50 170 µs at 220 V
Luminaires per MCB	B16: 11 · C16: 19 · C25: 30 · D16: 32
Surge protection	6 kV line-to-line, 10 kV line-to-ground (IEC 61000-4-5)
Labor Factor and THD	> 0.9 at 65–100 % load, THD < 15 % at 60–100 %

Construction

Housing	316L stainless steel
Surface treatment	electrolytically polished
Bracket	High-tensile 316L stainless steel, ± 240° in 30° increments
Front	impact-resistant glass or borosilicate IK08
Color	stainless steel
Dimensions	320 × 180 × 100 mm
Weight	7.0 kg, including bracket
Cable type	SiHF-OB heat-resistant, 4 cores (2 × 1.0 mm² + 2 × 0.5 mm²), 15.0 m
Connection	pre-assembled cable, loose wires
Accessories	No separate accessory included with this model

Protection and durability

IP Ratings	IP66, IP67, IP68 and IP69K
Impact Resistance	IK08
Corrosion class	C5 and CX (ISO 9223). 316L is CRC III according to EN 1993-1-4, PREN approximately 24
Vibration class	6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27
Operating temperature	−45 to +120 °C
LED lifespan	TM-21 L90B05: > 360,000 h at 50 °C · 103,000 h at 85 °C · 71,700 h at 105 °C · 51,400 h at 120 °C
Driver lifespan	≥ 100,000 hours at Tc 75 °C, ≥ 130,000 hours at Tc 50 °C
MTBF driver	≥ 320,000 hours at Tc 75 °C (MIL-HDBK-217F)
Warranty	5 years to +120 °C
Certification	CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request.
Packaging	depending on quantity, upon request

Item number

SNHT04-65K · also 40K and 27K

The 316L high-temperature version for the 24 V vehicle electrical system, up to +110 °C.

7,000 lm

Light

Luminous flux	7,000 lm
Power consumption	35 W
Efficiency	200 lm/W
Optics	120° ultra-wide. HT optics are not available on the Snapper.
Color temperatures	6500K, 4000K, and 2700K
Bi-color	not available as standard from HT
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam

Electric

Voltage range	20–35 VDC
Nominal voltage	24 V
Current draw	approx. 1.5 A at 24 V
Dimming	custom work
Driver	DC driver circuit board
Driver Type	not applicable, driver on board
Inrush current	not applicable, driver on board
Luminaires per MCB	not applicable, driver on board
Surge protection	not applicable, driver on board
Labor Factor and THD	not applicable, driver on board

Construction

Housing	316L stainless steel
Surface treatment	electrolytically polished
Bracket	High-tensile 316L stainless steel, ± 240° in 30° increments
Front	impact-resistant glass or borosilicate IK08
Color	stainless steel
Dimensions	320 × 180 × 100 mm
Weight	7.0 kg, including bracket
Cable type	SiHF-OB heat-resistant, 2 conductors (2 × 1.0 mm²), 15.0 m
Connection	pre-assembled cable, loose wires
Accessories	No separate accessory included with this model

Protection and durability

IP Ratings	IP66, IP67, IP68 and IP69K
Impact Resistance	IK08
Corrosion class	C5 and CX (ISO 9223). 316L is CRC III according to EN 1993-1-4, PREN approximately 24
Vibration class	6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27
Operating temperature	−45 to +110 °C
LED lifespan	TM-21 L90B05: > 360,000 h at 50 °C · 103,000 h at 85 °C · 71,700 h at 105 °C · 51,400 h at 120 °C
Driver lifespan	not applicable
MTBF driver	not applicable, driver on board
Warranty	5 years to +110 °C
Certification	CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request.
Packaging	depending on quantity, upon request

Item number

SNHT05-65K · also 40K and 27K

Quantum-sealed 316L housing in Dark Black, for processes involving both high temperatures and aggressive chemicals.

7,000 lm

Light

Luminous flux	7,000 lm
Power consumption	35 W
Efficiency	200 lm/W
Optics	120° ultra-wide. HT optics are not available on the Snapper.
Color temperatures	6500K, 4000K, and 2700K
Bi-color	not available as standard from HT
CRI (Ra)	> 70, or optionally 80 or 90
Color consistency	3-step MacAdam

Electric

Voltage range	90–305 VAC
Nominal voltage	Not applicable to AC
Current draw	approx. 0.2 A at 220 V · 0.3 A at 110 V
Dimming	0–10 V, PWM, and DALI-2, or via NFC
Driver	remote BLD075, compatible with DRB-1
Driver Type	BLD075, 75 W
Inrush current	66 A peak, T50 170 µs at 220 V
Luminaires per MCB	B16: 11 · C16: 19 · C25: 30 · D16: 32
Surge protection	6 kV line-to-line, 10 kV line-to-ground (IEC 61000-4-5)
Labor Factor and THD	> 0.9 at 65–100 % load, THD < 15 % at 60–100 %

Construction

Housing	316L stainless steel, quantum-sealed
Surface treatment	electrolytically polished
Bracket	High-tensile 316L stainless steel, ± 240° in 30° increments
Front	impact-resistant glass or borosilicate IK08
Color	Quantum Sealed Dark Black
Dimensions	320 × 180 × 100 mm
Weight	7.0 kg, including bracket
Cable type	SiHF-OB heat-resistant, 4 cores (2 × 1.0 mm² + 2 × 0.5 mm²), 15.0 m
Connection	pre-assembled cable, loose wires
Accessories	No separate accessory included with this model

Protection and durability

IP Ratings	IP66, IP67, IP68 and IP69K
Impact Resistance	IK08
Corrosion class	C5 and CX (ISO 9223). 316L is CRC III according to EN 1993-1-4, PREN approximately 24
Vibration class	6 G at resonance (IEC 60068-2-6), shock IEC 60068-2-27
Operating temperature	−45 to +120 °C
LED lifespan	TM-21 L90B05: > 360,000 h at 50 °C · 103,000 h at 85 °C · 71,700 h at 105 °C · 51,400 h at 120 °C
Driver lifespan	≥ 100,000 hours at Tc 75 °C, ≥ 130,000 hours at Tc 50 °C
MTBF driver	≥ 320,000 hours at Tc 75 °C (MIL-HDBK-217F)
Warranty	3 years up to +120 °C
Certification	CE, IEC 60598, EN 55015, EN 61547, EMC. North America upon request.
Packaging	depending on quantity, upon request

All values above are also listed on the datasheet, including dimensions and order code.

For the installer

Driver, circuit loading and protection

The driver is separate from the luminaire and can be placed in the DRB-1 driver box. The values below are from the Upowertek datasheets and apply per driver, not per luminaire.

Driver AC

BLD240

240 W, remote, in DRB-1

Inrush current

66 A piek

T50 0.5 ms at 220 V

Overvoltage

6 / 10 kV

line-to-line / line-to-earth, IEC 61000-4-5

MTBF driver

280,000 h

at Tc 75 °C, MIL-HDBK-217F

Maximum number of drivers per miniature circuit breaker

Driver	B16	C16	C25	D16
BLD240 · AC 180 W	3	6	9	10
BLD075 · HT 35 W	11	19	30	32

Calculated with ABB S200 at 220 V, from the manufacturer's MCB table. Guideline for the engineering phase and not a replacement for the installation calculation; for verification we provide a lighting advice and installation calculation. If there are multiple drivers in one luminaire, divide the number by that number of drivers.

Other electrical

Power factor > 0.95 at 60 to 100 % load; at HT > 0.9
THD < 15 % at 65 to 100 % load
Driver lifetime ≥ 100,000 h at Tc 75 °C, ≥ 130,000 h at Tc 50 °C
Dimming with 0–10 V, PWM and DALI-2, or via NFC
Leakage current max. 0.7 mA at 240 VAC, IEC 60598-1
DC driver input also possible from 127 to 420 VDC

Optics

Optics and measured beam angles

The aluminum Snapper uses six off-the-shelf optics, while the 316L versions use the JEL optics set. Below are the angles from our own IES library, with the optics name listed next to them as the order code. An optic name is not a measured value: the 69° optic measures 72°. If you are unsure between two angles, we will support your choice with a free lighting calculation.

15° spot

Driving light for long distance, 40 to 200 m

30° floodlight

Medium range, 25 to 80 m; measured on the Snapper HC x3

60° wide-angle spotlight

Wide illumination close up, 15 to 50 m

90° extra wide

Area lighting up to 25 m; also 20° × 50° and 20° × 85° asymmetric

Optics	Beam angle 50 %	Veldhoek 10 %	Application distance
15° spot · aluminium	15° nominal	not measured yet	40 to 200 m
30° · aluminum	29°	73°	25 to 80 m, measured on the Snapper HC x3
60° · aluminum	60° nominal	not measured yet	15 to 50 m
90° · aluminum	90° nominal	not measured yet	up to 25 m, close by
14° spot · 316L set	13°	27°	50 to 300 m
38° · 316L-set	37°	69°	30 to 100 m, symmetrical
69° · 316L-set	72°	103°	15 to 60 m, symmetrical
14° × 46° flare · 316L-set	13° × 45°	30° × 70°	up to 150 m, asymmetrical
HT, 120° very wide	136°	168°	up to 15 m, standard on all HT models

The beam angle is the full angle between the directions in which the intensity has dropped to 50 % of the peak; the field angle is 10 %. Combinations of optics within a single luminaire are possible; the aluminum version is also available with the asymmetric 20° × 50° and 20° × 85° optics. Optics that have not yet been measured are listed with their nominal values.

Mounting

Video editing software

On cranes and machinery, the mounting method determines whether a light luminaire will last its full service life. That is why the Snapper is available with application-specific brackets and is built directly into the boom on mobile tower cranes.

Rear mount bracket

The DRB-1 driver box goes directly on the back of the luminaire. One compact unit, without a separate driver position in the housing. Also available in 316L for the stainless steel version.

Crane Light Stabilizer

Self-stabilizing suspension that keeps the lamp level in a crane jib, so that the beam remains aimed at the work zone at every jib stage.

Boom installation

On mobile tower cranes, the Snapper is built directly into the boom structure due to its size and weight, protecting it from collisions and vandalism.

DRB-1 driver box

Takes the remote BLD240 or BLD075 driver, on the mast, in the boom or on the back of the luminaire with the rear mount bracket.

A fall protection cable is optionally available and is often a strict requirement when installed above a work area. The DRB-1 driver box houses the remote driver and is mounted directly behind the luminaire using the rear mount bracket. The Crane Light Stabilizer has its own product page. For tower cranes see also Tower crane lighting.

Dimensioning

All dimensions in millimeters. The mounting pattern and bracket cross-sections are in the datasheet; DXF and STEP files are available upon request.

Views with dimensions. Drawing not to scale.

Aluminum and HT luminaire	312 × 181 × 118 mm
316L luminaire	320 × 180 × 100 mm
Weight of aluminum	3.1 kg
Weight 316L	7.0 kg
Bracket adjustment	± 240°, in 30° increments
AC and DC Cable Length	2.0 m
Cable length HT	15.0 to 25.0 m, depending on the model
Packaging	on request

The weight listed includes the bracket. Packaging dimensions and weight are included in the listing because JEL handles shipping.

Applications

Where the Snapper is installed in practice, and why there.

Cranes and lifting equipment

For mobile cranes, tower cranes, and reach stackers where there is limited installation space but a high demand for light. Its low weight minimizes the load on the boom and structure.

View tower crane lighting

Construction and earthmoving equipment

For excavators, rollers, and other equipment in dusty, humid, and shock-prone environments. The DC version connects directly to the 24 V on-board electrical system.

View mobile machines

Maritime and offshore

For ships, rescue vessels, and offshore installations. Available with a standard corrosion-resistant coating or made entirely of 316L for the harshest salt exposure.

Explore Offshore and Maritime

High temperature

For oven zones, drying chambers, and process systems up to +120 °C, where standard LED lighting is not thermally sufficient.

Explore heavy industry and extreme heat

High temperature

The HT version operates at temperatures up to +120 °C

Where standard LED luminaires fail due to heat, the Snapper HT continues to operate: 35 W and 7,000 lumens at ambient temperatures up to +120 °C, with additional thermal protection and impact-resistant glass or borosilicate glass.

The driver remains outside the hot zone: a 25-meter-long SiHF-OB cable bridges the distance to the BLD075, which fits inside the DRB-1 driver box. Optionally available in a 316L housing, or quantum-sealed for hot and chemically aggressive processes. The DC version operates up to +110 °C.

Service life at +50 °C	> 360,000 hours
at +85 °C	103,000 hours
at +105 °C	71,700 hours
at +120 °C	51,400 hours

TM-21 L90B05. 5-year warranty up to +120 °C. See also High-temperature lighting.

Evidence

Tested, not promised

Every claim carries its condition in the same sentence. You can read more about the test methods at Product Quality and Warranty.

Salt Spray · ISO 9227

1,007 hours

Neutral salt spray test in accordance with ISO 9227, performed on a cast housing that had been scratched beforehand: no coating delamination after 1,007 hours.

Vibration · IEC 60068-2-6

6 G continuous

Vibration-resistant up to 6 G at resonance in accordance with IEC 60068-2-6, with shock testing in accordance with IEC 60068-2-27.

Practice

Since 2019 at +120 °C

The first Snapper HT luminaires have been operating above VPK Paper’s paper machines since 2019, at 120 °C and with continuous steam.

Paper Industry · +120 °C

VPK Paper

LED lighting above the paper machine, where previous luminaires kept failing at 120 °C and under continuous steam exposure.

The first Snapper HT luminaires have been installed there since 2019.

View the project

Food industry · drying tunnels

Farm Frites

Heat-resistant lighting for drying tunnels and process areas in the food industry, where heat, moisture, and cleaning converge.

Snapper HT in 316L, resistant to heat and high-pressure cleaning.

View the project

Steel industry · process

Tata Steel IJmuiden

Making the lighting for the steelmaking process in IJmuiden more sustainable, with the Snapper as the permanent process lighting.

Better visibility of the process, with LEDs instead of gas discharge.

View the project

Downloads

Data Sheet

Four pages with the full specification, dimensions and order code. Available for immediate download.

3D file

STEP or DXF for your own drawing work, including the mounting pattern of the bracket.

Photometric files

All 11 versions and optics of the Snapper in EULUMDAT (.ldt) format, combined into a single 0.9 MB ZIP file. DIALux and Relux can read these files directly. The part number is included in the file name and within the file itself. We provide IES files upon request.

FAQ

Frequently Asked Questions

Is your question not listed, or would you like something calculated? An engineer will respond within 1 business day.

Is the Snapper a work light?

No. The Snapper is a compact industrial floodlight: designed for applications where a full-size floodlight is needed, but weight and mounting space are limited. For local work lighting on a machine, the Piranha and the Goby are the logical choices.

What is the difference between the Marlin, the Barracuda, and the Snapper HC?

The Marlin has a more robust design, is IK10-rated, and weighs 5.5 kg with an output of 18,000 lm. The Barracuda delivers 44,100 lm from a unit weighing 10.1 kg and offers the widest range of mounting options. The Snapper HC combines multiple Snapper units into a single floodlight ranging from 270 to 500 W and up to 83,000 lm, designed for harbor and STS cranes. The Snapper itself is the choice for maximum lumens per kilogram: 31,000 lm from 3.1 kg.

How many luminaires are allowed on a single circuit breaker?

For the AC version with the BLD240 driver: 3 on a B16, 6 on a C16, 9 on a C25, and 10 on a D16. For the HT with the BLD075: 11, 19, 30, and 32. These numbers come from the manufacturer's MCB table at 220 V, calculated using ABB S200, and apply per driver. This is a guideline for the engineering phase and is not a replacement for the installation calculation.

Can the Snapper be dimmed or integrated into a control system?

Yes. The AC versions are dimmable via 0–10 V, PWM, and DALI-2, and can also be configured via NFC. With the DC version, dimming is customized because a constant current is used there.

Which lens angle should I choose?

That depends on the mounting height, desired illuminance, the shape of the work zone, and the operator's line of sight. There is no rule of thumb that determines this adequately. We substantiate it with a lighting calculation, which also specifies the number of luminaires, the positioning, and the expected lux levels. The datasheet shows the measured angle, not the optic name: the 30° optic measures a 29° beam angle and a 73° field angle.

Is IK08 sufficient for my application?

For most machine and crane locations, yes: IK08 with impact-resistant glass can withstand normal industrial use, tools, and stone chips. If maximum impact resistance (IK10) is a strict requirement,for example, where collisions or falling loads are a real risk,choose the Marlin or the Barracuda.

Can the Snapper be used in corrosive environments?

Yes. The aluminum housing contains less than 0.08 % of copper to minimize galvanic corrosion and features a two-layer titanium-based e-coating; the bracket is made of 316L as standard. This results in corrosion class C5 Industrial and Maritime. For aggressive chemicals or extremely salty water, the fully 316L version is available, with C5 and CX ratings, a PREN of approximately 24, and a 20-year warranty on the housing. For hot and chemically aggressive processes, there is the Quantum Sealed HT-CHEM.

Is the Snapper resistant to high-pressure cleaning?

The aluminum version is tested to IP66, IP67 and IP68, up to and including submersion. For high-pressure and high-temperature steam jet, IP69K, choose the 316L version: it is tested to all four classes.

What is the actual life expectancy?

The 360,000 hours is a TM-21 L90B05 value: at that point, at least 95 % of the luminaires will still be delivering at least 90 % of their initial light output. This is more stringent than the standard L70 and L80 specifications. In practice, the LED is rarely the limiting factor; environmental stress, temperature, corrosion, and installation quality determine the luminaire’s actual performance in the field.

What does the warranty actually cover?

Standard five years on the complete luminaire. For a 316L housing, twenty years applies to the housing itself and five years on everything else. The HT versions are rated for five years up to +120 °C with AC and up to +110 °C with DC; the quantum sealed HT-CHEM for three years up to +120 °C.

Is the Snapper ATEX- or Ex-certified?

No. The luminaire is not intended for hazardous areas. If ATEX is a requirement, please discuss this in advance, and we will determine a suitable solution together.

Can the Snapper be used in an OEM application or mass production?

Yes. The luminaire is supplied as a fixed component on cranes, machinery, and equipment. For series production, we tailor the optics, voltage version, color temperature, and mounting accessory to the machine architecture.

What standards and certifications does the Snapper have?

CE, IEC 60598, EN 55015, EN 61547 and the EMC Directive. IEC 60598 covers construction, electrical safety, and thermal behavior. In addition, the luminaire helps meet EN 12464-2 for the safe lighting of industrial outdoor workplaces. Configurations for North America are available upon request.

Discuss your Snapper application

Tell us about the application, the location, and the scope of the project. We'll help you choose the design, the finish, and the mounting hardware.

Lucas de Graaf

Technical Director, JEL Products

033-7859809

You will receive a response from the person who is also preparing your lighting calculation.

A reply within one working day, from an engineer
Free lighting calculation with number of luminaires and lux
Test luminaire possible before you decide
5-year warranty, 20 years on a 316L housing

Rather direct contact

+31 (0)33 785 9809

We respond within one working day. We deliver standard items within a week. Custom work, such as a different light colour, a different CRI or a bespoke version, by arrangement.

We use your information solely to review your request and respond to it.
