All technical documentation in one place: power ratings, luminous flux, optics, voltage ranges, protection classes, materials, and application limits. Direct downloads, no form required.
Components and designs are continuously being further developed, which means that a datasheet may deviate from the current specification. Therefore, the product page is always decisive.
Moreover, in high temperatures, corrosive environments, cranes, terminals, offshore applications, or with non-standard voltages, a datasheet is not enough to evaluate a design. Submit those situations to us.
Sorted by luminous flux within each category. Click on a product name for the full specification, or download the datasheet directly. Where “on request” is stated, there is no public PDF yet; you will receive it by email, usually the same working day.
24 of 24 luminaires
| Luminaire | Luminous flux | Power | IP and IK | Category | Data Sheet | Photometric files |
|---|---|---|---|---|---|---|

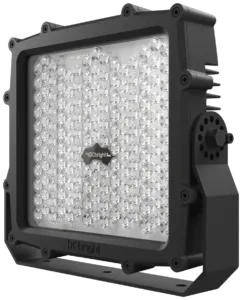

| Orca | 111,300 lm | 320-800 W | IP69K / IK10 | Floodlight | Download · HT · 316L · full range | LDT, zip |

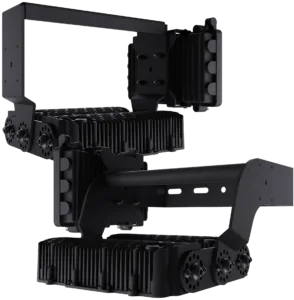

| Snapper HC | 83,000 lm | 300-500 W | IP68 / IK08 | Floodlight | Download · full range | LDT, zip |
| Shark | 50,000 lm | 320 W | IP69K / IK10 | Floodlight | Download | LDT, zip |
| Barracuda | 44,100 lm | 240-320 W | IP69K / IK10 | Floodlight | Download · HT · 316L · full range | LDT, zip |
| Snapper | 31,000 lm | 180 W | IP68 / IK08 | Floodlight | Download · HT · 316L · full range | LDT, zip |
| Marlin | 18,000 lm | 120 W | IP69K / IK10 | Floodlight | Download | LDT, zip |
| DarkLicht S | 10,260-12,825 lm | 60-75 W | IP69K / IK08 | Work light | Download | on request |
| Piranha | 8,400 lm | 70 W | IP69K / IK10 | Work light | Download · 316L · full range | LDT, zip |
| Goby | 8,200 lm | 65 W | IP69K / IK10 | Work light | Download · HT · full range | LDT, zip |
| DarkLicht Mini | 4,800 lm | 30 W | IP69K / IK08 | Work light | Download | on request |
| Goby Mini | 2,300 lm | 18W | IP69K / IK10 | Work light | Download · full range | LDT, zip |

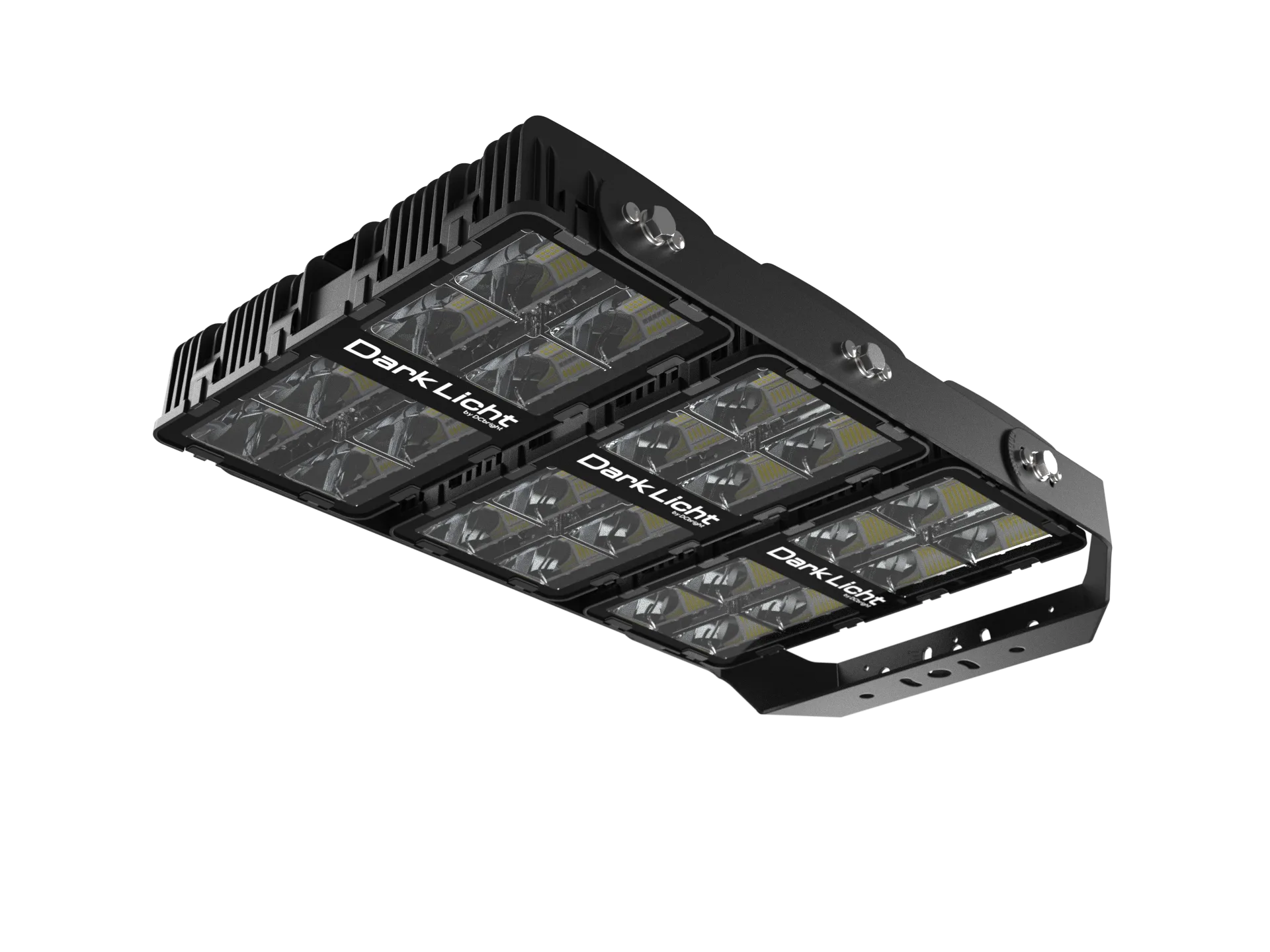

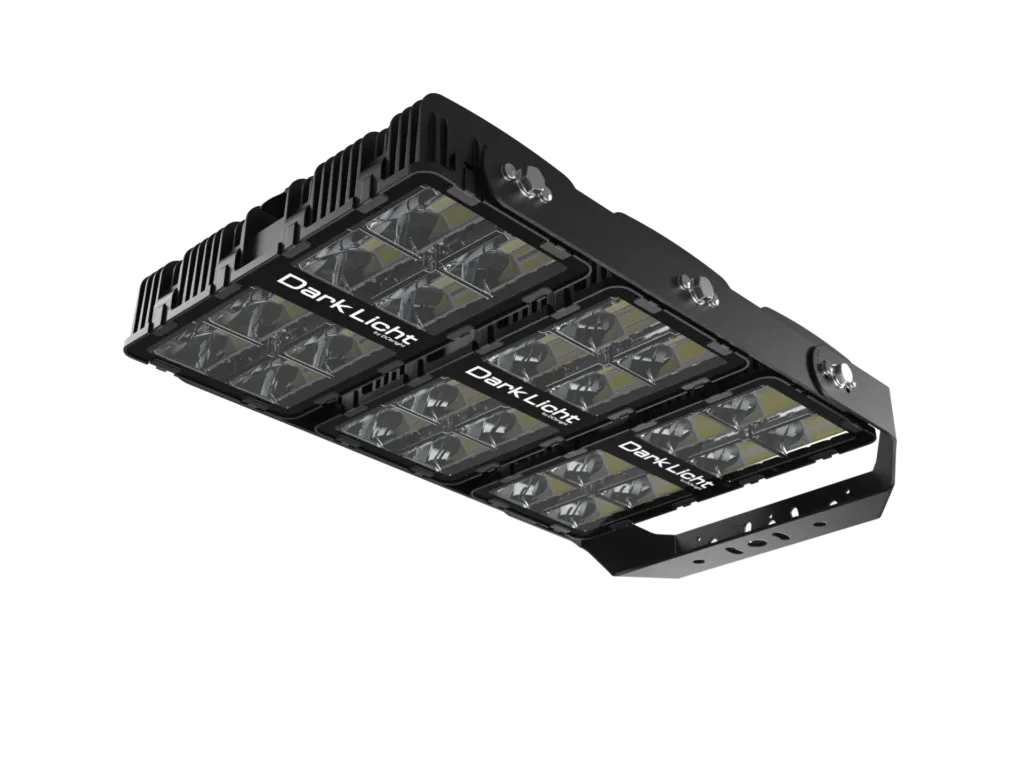

| DarkLicht Three | 307,800 lm | 1,800 W | IP67 / IK07 | Full cut-off floodlight | Download · full range | on request |

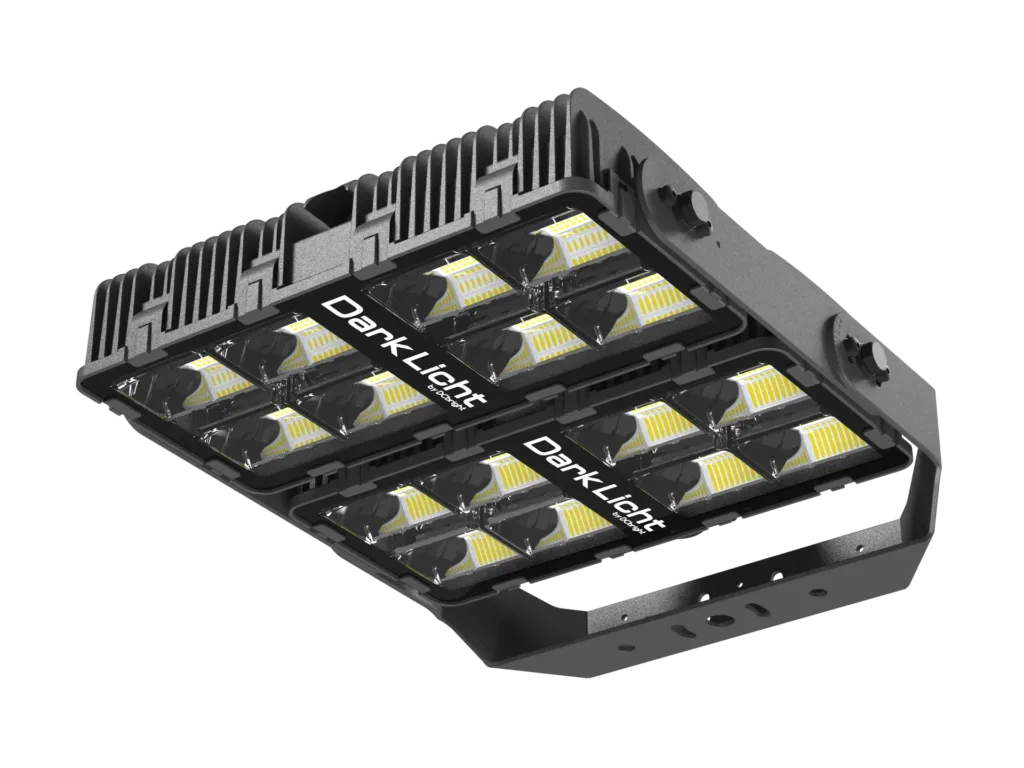

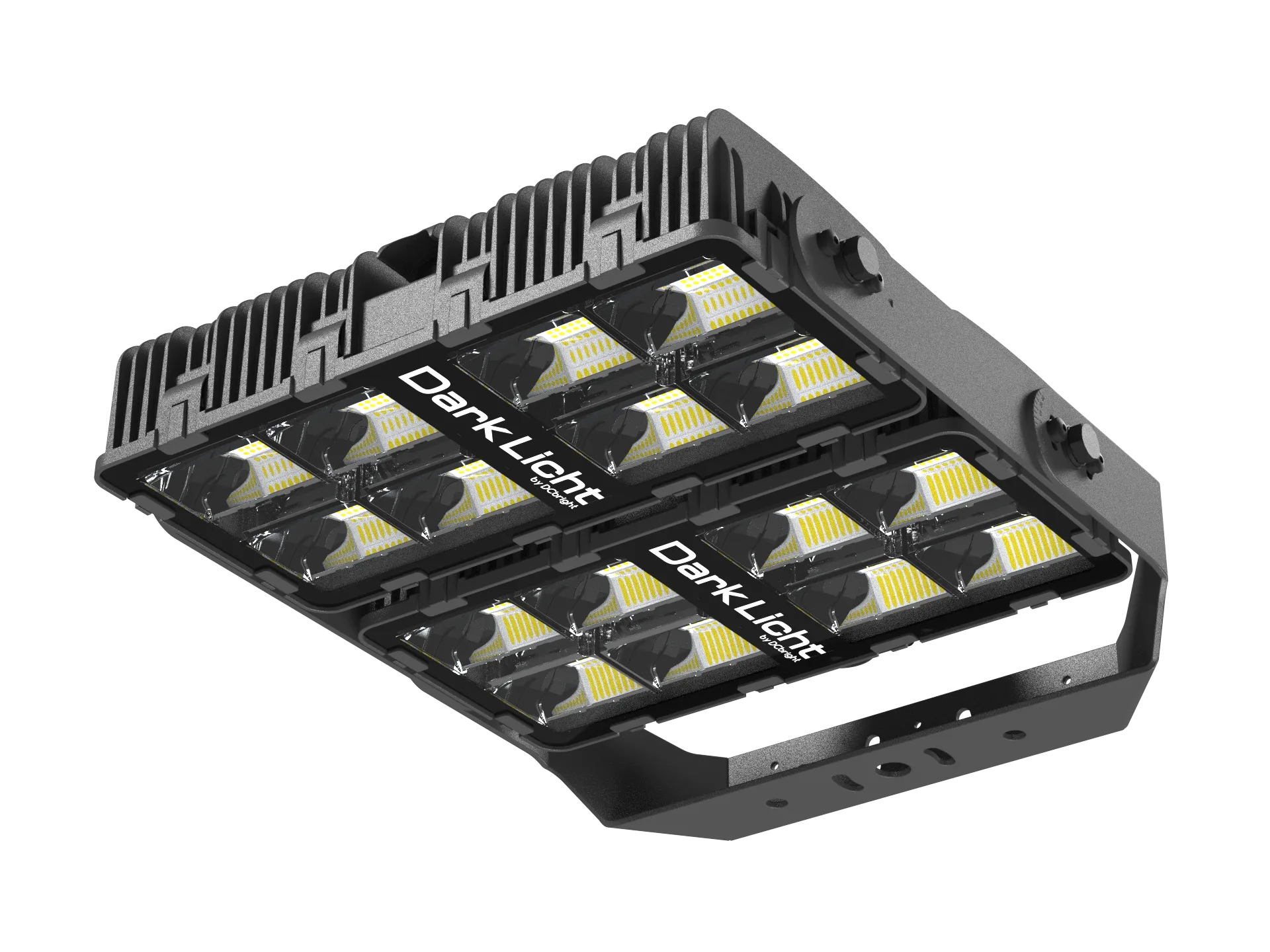

| DarkLicht Two | 205,200 lm | 800-1,200 W | IP67 / IK07 | Full cut-off floodlight | Download · full range | on request |
| DarkLicht One | 102,600 lm | 320-600 W | IP67 / IK07 | Full cut-off floodlight | Download · full range | on request |
| DarkLicht M | 51,300 lm | 150-300 W | IP69K / IK08 | Full cut-off floodlight | Download | on request |

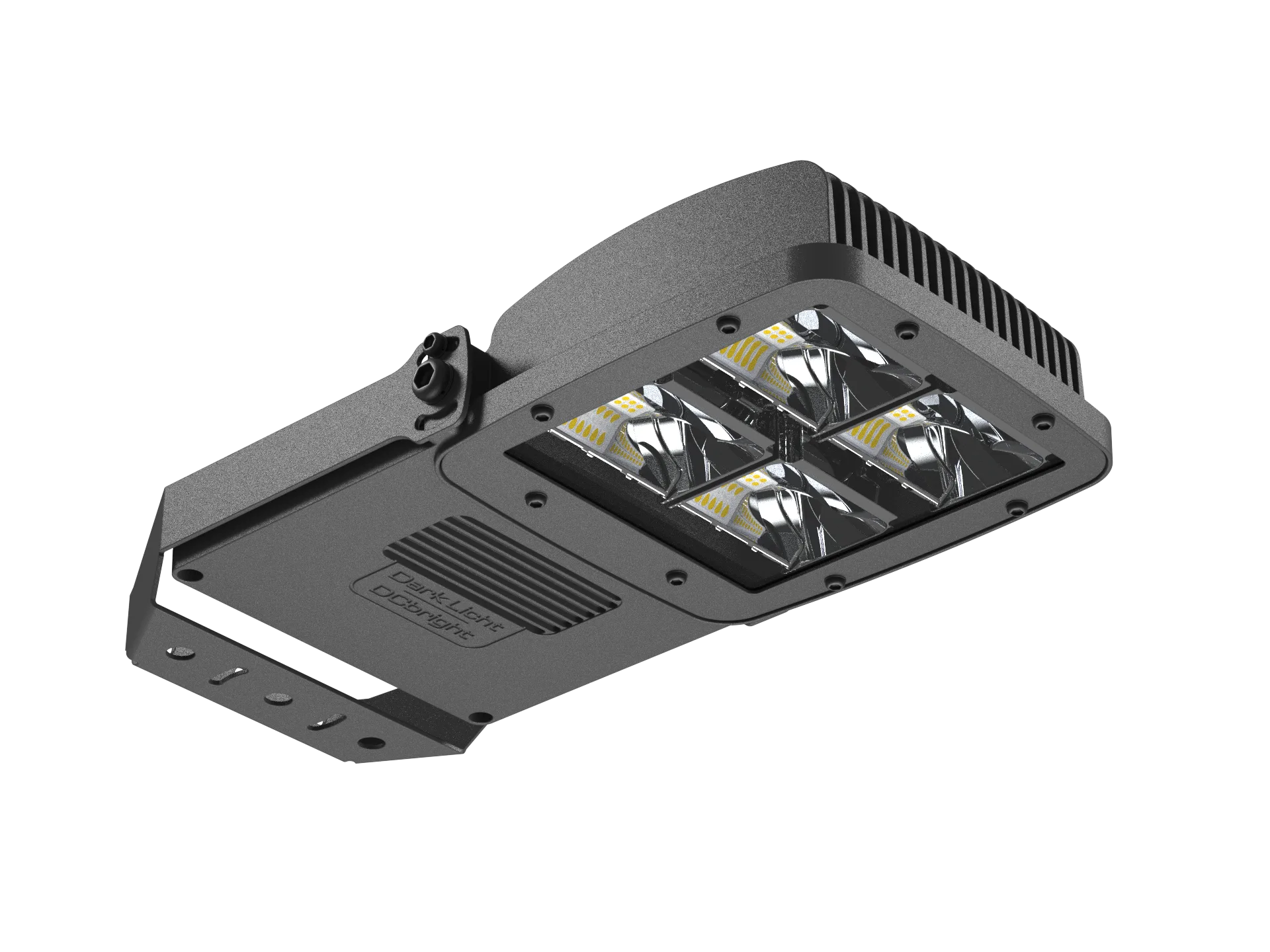

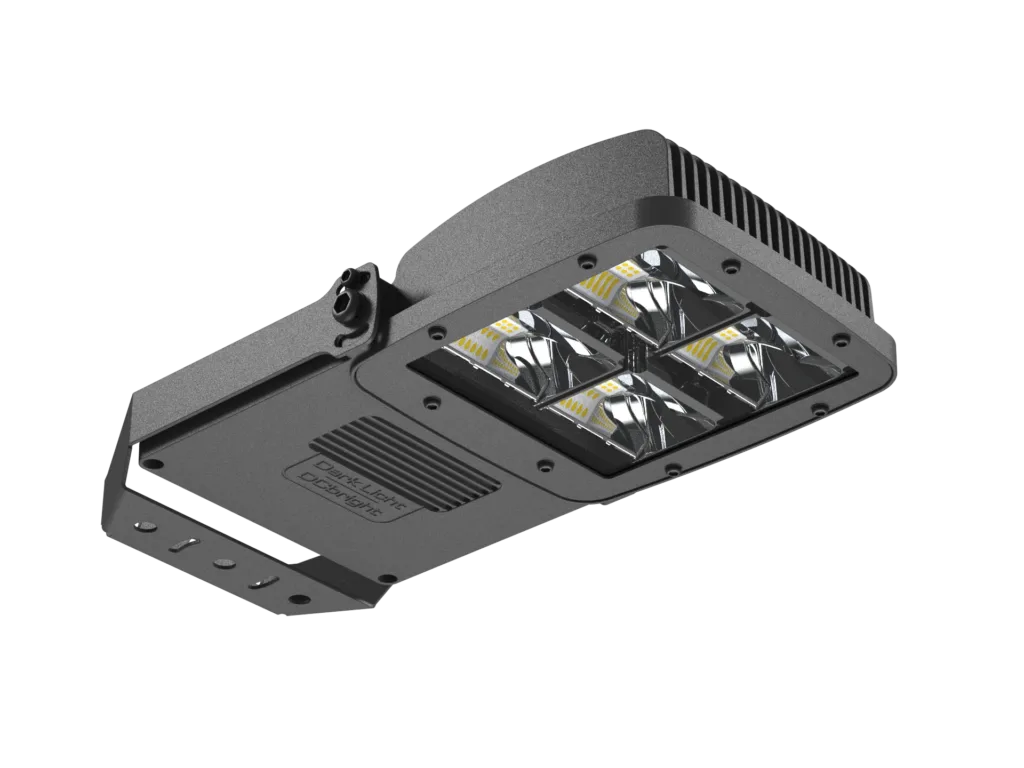

| DarkLicht D | 34,200 lm | 60-200 W | IP67 / IK08 | Full cut-off floodlight | Download | on request |

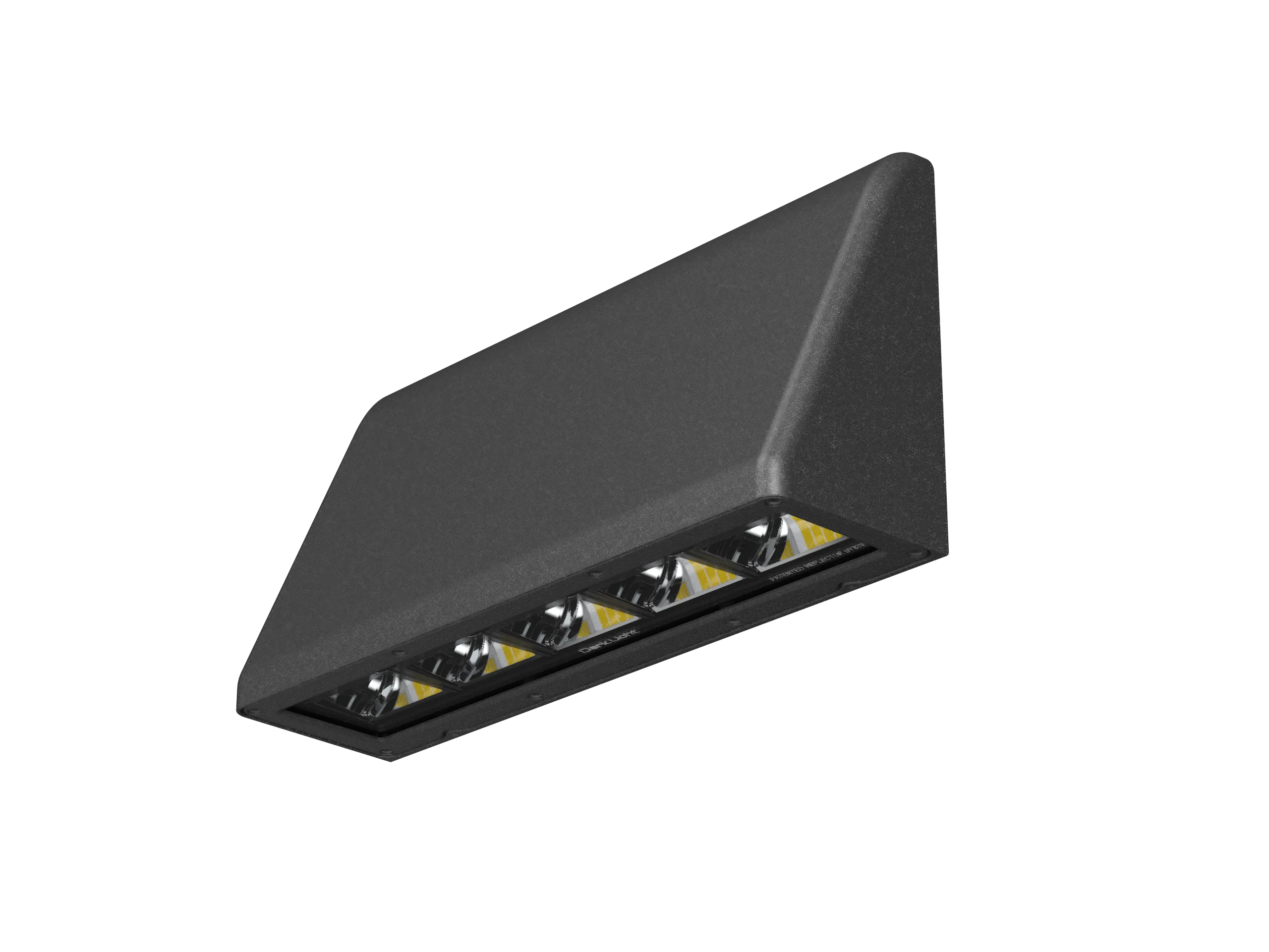

| DarkLicht WP wallpack | 16,000 lm | 60-100 W | IP69K / IK08 | Full cut-off floodlight | Download | on request |
| Linear | 25,600 lm | 22-120 W | IP69K / IK08 | Building-related | Download · HT · full range | LDT, zip |
| Manta canopy | 22,400 lm | 10-100 W | IP69K / IK08 | Building-related | Download · HT · full range | LDT, zip |
| Tower crane frame DL-CCB | 68,400-102,600 lm | 400-600 W | IP67 / IK07 | Mounting | Download | n/a |
| Crane Light Stabilizer | full series | 240-800 W | IP69K / IK10 | Mounting | Download | n/a |
| Crane Light Director | full series | 240-800 W | IP69K / IK10 | Mounting | Upon request | n/a |
| Steel light poles | per setup | from a height of 8 m | DarkSky possible | Masts | Catalogue | n/a |
| Mobile lighting tower | 48,000-136,800 lm | multiple options | DarkSky possible | Masts | Upon request | n/a |
6 of 24 luminaires
| Luminaire | Luminous flux | Power | IP and IK | Category | Data Sheet | Photometric files |
|---|---|---|---|---|---|---|
| Orca | 111,300 lm | 320-800 W | IP69K / IK10 | Floodlight | Download · HT · 316L · full range | LDT, zip |
| Snapper HC | 83,000 lm | 300-500 W | IP68 / IK08 | Floodlight | Download · full range | LDT, zip |
| Shark | 50,000 lm | 320 W | IP69K / IK10 | Floodlight | Download | LDT, zip |
| Barracuda | 44,100 lm | 240-320 W | IP69K / IK10 | Floodlight | Download · HT · 316L · full range | LDT, zip |
| Snapper | 31,000 lm | 180 W | IP68 / IK08 | Floodlight | Download · HT · 316L · full range | LDT, zip |
| Marlin | 18,000 lm | 120 W | IP69K / IK10 | Floodlight | Download | LDT, zip |
5 of 24 luminaires
| Luminaire | Luminous flux | Power | IP and IK | Category | Data Sheet | Photometric files |
|---|---|---|---|---|---|---|
| DarkLicht S | 10,260-12,825 lm | 60-75 W | IP69K / IK08 | Work light | Download | on request |
| Piranha | 8,400 lm | 70 W | IP69K / IK10 | Work light | Download · 316L · full range | LDT, zip |
| Goby | 8,200 lm | 65 W | IP69K / IK10 | Work light | Download · HT · full range | LDT, zip |
| DarkLicht Mini | 4,800 lm | 30 W | IP69K / IK08 | Work light | Download | on request |
| Goby Mini | 2,300 lm | 18W | IP69K / IK10 | Work light | Download · full range | LDT, zip |
6 of 24 luminaires
| Luminaire | Luminous flux | Power | IP and IK | Category | Data Sheet | Photometric files |
|---|---|---|---|---|---|---|
| DarkLicht Three | 307,800 lm | 1,800 W | IP67 / IK07 | Full cut-off floodlight | Download · full range | on request |
| DarkLicht Two | 205,200 lm | 800-1,200 W | IP67 / IK07 | Full cut-off floodlight | Download · full range | on request |
| DarkLicht One | 102,600 lm | 320-600 W | IP67 / IK07 | Full cut-off floodlight | Download · full range | on request |
| DarkLicht M | 51,300 lm | 150-300 W | IP69K / IK08 | Full cut-off floodlight | Download | on request |
| DarkLicht D | 34,200 lm | 60-200 W | IP67 / IK08 | Full cut-off floodlight | Download | on request |
| DarkLicht WP wallpack | 16,000 lm | 60-100 W | IP69K / IK08 | Full cut-off floodlight | Download | on request |
2 of 24 luminaires
| Luminaire | Luminous flux | Power | IP and IK | Category | Data Sheet | Photometric files |
|---|---|---|---|---|---|---|
| Linear | 25,600 lm | 22-120 W | IP69K / IK08 | Building-related | Download · HT · full range | LDT, zip |
| Manta canopy | 22,400 lm | 10-100 W | IP69K / IK08 | Building-related | Download · HT · full range | LDT, zip |
3 of 24 luminaires
| Luminaire | Luminous flux | Power | IP and IK | Category | Data Sheet | Photometric files |
|---|---|---|---|---|---|---|
| Tower crane frame DL-CCB | 68,400-102,600 lm | 400-600 W | IP67 / IK07 | Mounting | Download | n/a |
| Crane Light Stabilizer | full series | 240-800 W | IP69K / IK10 | Mounting | Download | n/a |
| Crane Light Director | full series | 240-800 W | IP69K / IK10 | Mounting | Upon request | n/a |
2 of 24 luminaires
| Luminaire | Luminous flux | Power | IP and IK | Category | Data Sheet | Photometric files |
|---|---|---|---|---|---|---|
| Steel light poles | per setup | from a height of 8 m | DarkSky possible | Masts | Catalogue | n/a |
| Mobile lighting tower | 48,000-136,800 lm | multiple options | DarkSky possible | Masts | Upon request | n/a |
6 collections
| Collection | Content | Pages | File | Edition | Download |
|---|---|---|---|---|---|
| Product Range 2026 | the entire range | 22 | pdf, 10.5 MB | 2026 | Download |
| LED Floodlights | 6 luminaires | 34 | pdf, 9.9 MB | 2026 | Download |
| LED Work Lamps | 5 luminaires | 28 | PDF, 6.0 MB | 2026 | Download |
| High Temperature | 6 HT versions | 35 | pdf, 7.9 MB | 2026 | Download |
| 316L Stainless Steel | 4 versions | 24 | PDF, 6.1 MB | 2026 | Download |
| DarkLicht | 8 luminaires | 44 | pdf, 8.5 MB | 2026 | Download |
Luminous flux is the highest value within the product line; it varies per version and optics. Some product lines share a single datasheet, which is indicated. If a version is not listed, please request it via the form at the bottom.
In addition to the individual datasheets, there are bundled catalogs by theme. This is convenient for specifications or a comparison, because you then have the entire line side by side instead of individually per luminaire.
The entire program in a single document: floodlights, work lamps, area lights and systems, with the specifications per line.
2025-2026 edition
The HT series for the steel industry, glass production, furnaces, drying chambers, and heavy process installations, with the lifespan per ambient temperature.
up to +120 °C
Versions in stainless steel and with special coatings, for marine, chemical, offshore, and food processing environments.
316L stainless steel and coatings

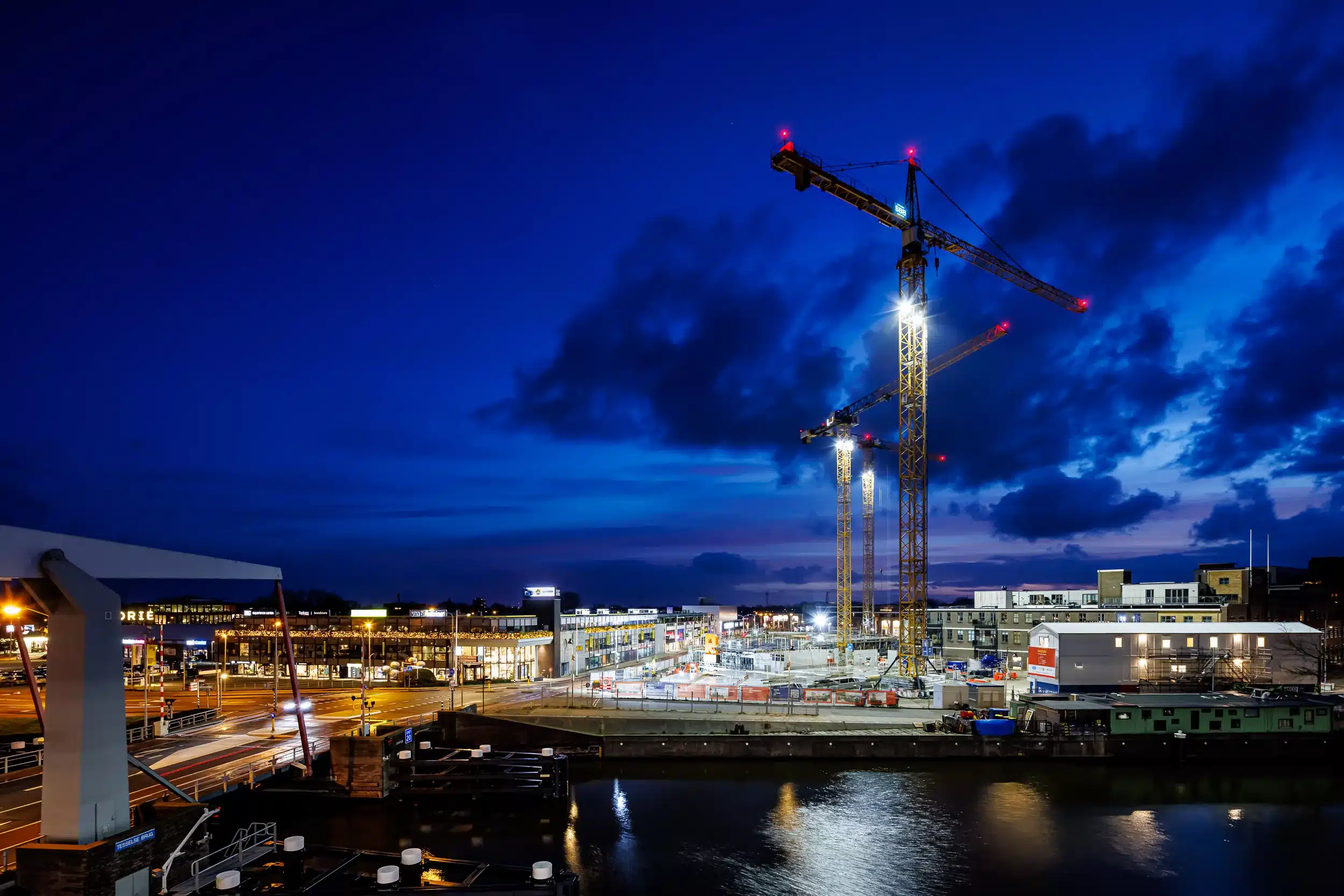

The complete tower crane system: DarkLicht full cut-off in the crane frame, the Crane Light Stabilizer for the luffing jib and the Barracuda boom light in the jib, with the distribution unit and the cut-off.
three systems
The glare-free work lamps for machines and vehicles, bundled in one document.
Mini and S
A datasheet tells you what a luminaire can do under test conditions. What it does not tell you is whether it will work in your situation: how many are needed, at what height, with which optics, and whether the environment allows for the specified values.
We determine the latter with a lighting calculation, free of charge and without any obligation to purchase. That is usually a matter of days and it prevents you from choosing on paper what doesn't work out on location.
| Luminous flux and efficiency at test conditions |
| Power consumption and voltage range |
| IP protection rating and IK impact resistance |
| Material, coating and front material |
| Beam angles and light colors |
| Operating temperature and lifespan |
| Dimensions, weight and certification |
| How many luminaires your situation requires |
| At what height and in what configuration |
| Which beam angle matches your distance |
| The light level that you actually achieve |
| The maintenance factor for your environment |
| What ends up outside the premises |
| Whether the structure bears the weight |
This page compiles the datasheets. For specifications or a permit application, you often need more; we provide that upon request, usually within one business day.
Photometric files for your own light calculation in DIALux or Relux, per luminaire and per optics.
On request, usually within 1 business day
Models and dimensional drawings for integration into your design or for determining the mounting position.
Upon request
Substantiation for claims regarding temperature, pressure, material, or radiation protection, for your client or insurer.
Upon request, per project
ISO 9001 and VCA** as a PDF, plus the product certifications CE, ENEC, and IEC 60598 per luminaire.
Available for immediate download at quality marks page
Not every application can be assessed on the basis of a standard datasheet. In the case of high temperatures, corrosive environments, cranes, terminals, offshore projects, or non-standard voltages, we verify which version is technically suitable.
Your request is being reviewed by an engineer. We will respond within 1 business day.
| Response | within 1 working day, by an engineer |
| Datasheets | direct download, no form |
| IES, 3D and test reports | on request |
| Lighting calculation | free of charge, even without an assignment |
