Power: 320 watts
Light intensity: 46,000 ā 50,000 lumens
Lens angles: 69Ā° ā 38Ā° ā 14Ć46Ā° ā 14Ā°
Color Temperature: 6500K ā 2200K

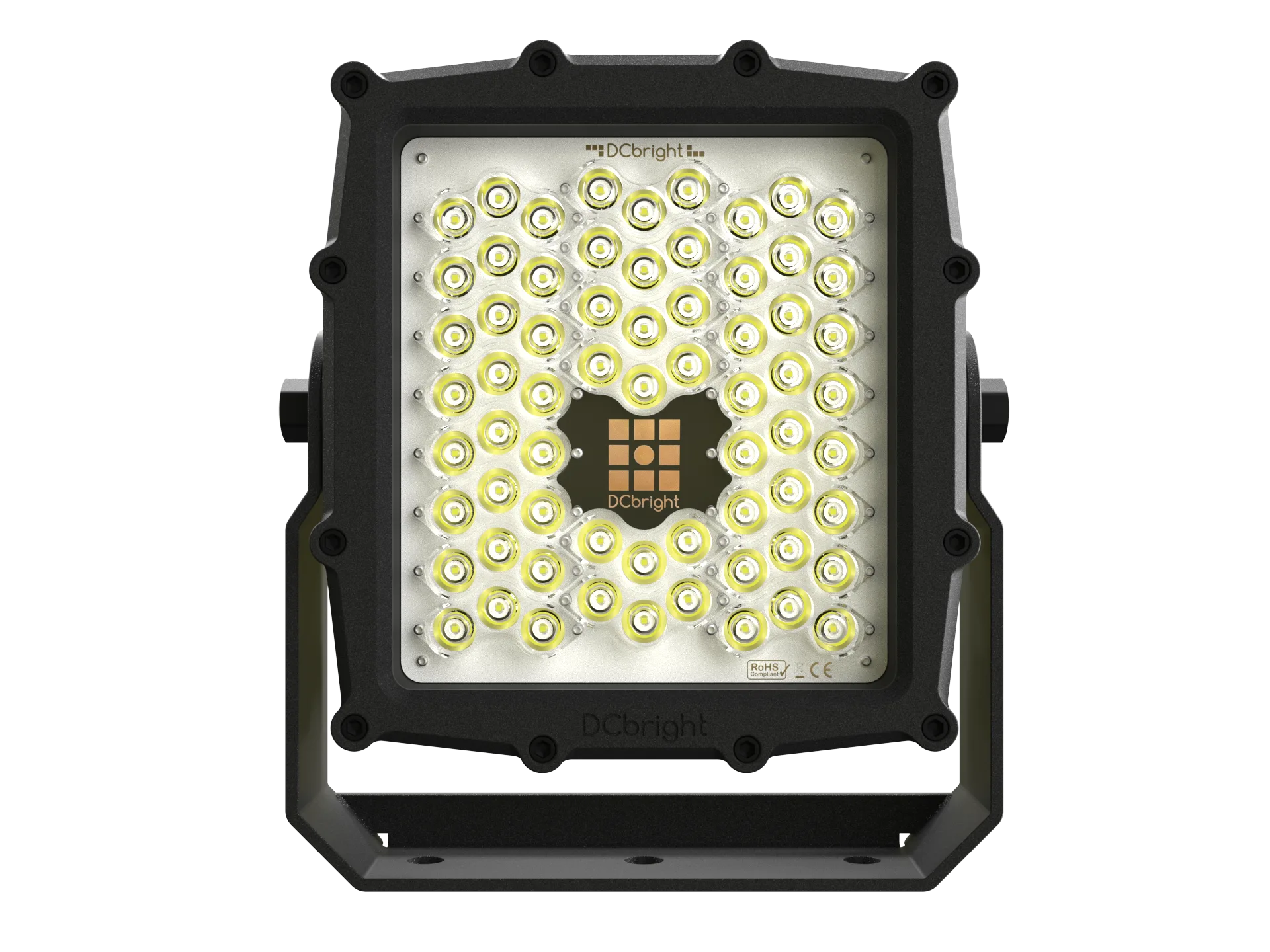

Of Shark LED Floodlight combines lightweight design with exceptional light performance, making it the ideal choice for heavy industrial applications where both efficiency and mobility is important. With a power of 320 W and a light output of up to 50,000 lumens, the Shark offers a surprisingly hoge lumen-per-kilogram verhouding, so that you receive maximum relief with minimal additional burden on your machines or installations.
Whether you are dealing with cranes, large excavators, light towers or even offshore environments, the Shark is designed to hold its own in harsh industrial conditions, with a coating of 93% titanium and IP69K certification. This makes it not only extremely robust and corrosion-resistant, but also remarkably light and easy to handle.
With a total weight around 9 kg (incl. bracket), the Shark is significantly lighter than other floodlights with the same lumen output, providing:
Power: 320 watts
Light intensity: 46,000 ā 50,000 lumens
Lens angles: 69Ā° ā 38Ā° ā 14Ć46Ā° ā 14Ā°
Color Temperature: 6500K ā 2200K
In the product family between theĀ Barracuda and theĀ Orca neemt de Shark een unieke positie in. Hij biedt de hoge efficiĆ«ntie van de Orca met een nog lichter ontwerp dan de Barracuda, waardoor hij uitblinkt in situaties waar gewicht en formaat een rol spelen.
Shark
Developed for dynamic and heavy industrial environments, for the working environment where the luminaire must keep working under any conditions. This floodlight is designed for maximum efficiency and lumen output. we offer a special bracket that can absorb dormant vibrations and shocks up to 200G. Perfect for crawler cranes, lattice boom cranes, bulk handling and transfer cranes.
Unique application specific accessories:
Want to know more? Check below specifications.
Shark (incl. brackets)
Developed for dynamic environments, even for where the fixture must remain stable, we offer a special brackets that can correct the up and down movements of a crane. Perfect for bulk handling and transfer cranes.
Unique application specific accessories:
Want to know more? Check below specifications.
For large construction machinery (such as cranes and foundation equipment), space is often less of an issue, but extreme robustness is. The Shark offers reliable and stable light output and minimal downtime in environments where this is critically important.
In mining and bulk handling, shock and dust resistance are crucial. The Shark was specifically developed for this market 13 years ago. Rough terrain conditions and shocks of up to 200 G when using reinforced brackets are not a problem.
Sea air and saltwater take their toll on equipment. With our titanium coating and optional stainless steel housing (316L), the Shark offers excellent resistance to corrosion. Ideal for harbor cranes, offshore platforms, and terminals.
Light enough for easy mounting on (mobile) light masts, strong enough to illuminate a large area. Offers a great mix of power and maneuverability. Available in AC and DC for various power options.
SH66 | 320W | 90-305 / 180-528VAC
Light output
Light intensity: 50.000 lumens
Efficiency: 156 lumens / watt
Power consumption: 320W
Amperage (380V): ~0.9A
Amperage (220V): ~1.5A
Amperage (110V): ~2.9A
Voltage range: 90-305VAC / 180-528VAC
Luminaire specifications
IP rating: IP69K
Impactrating: IK10
CRI (Ra): >70
Operating temperature range: -45Ā°C to +50Ā°C
Lifespan (L80B10): 196 000 hours
Lamp housing material: Aluminum alloy, <0.08% copper
(conversion layer & 2-layer titanium-based e-coating)
Lamp bracket material: High-strength 316L stainless steel with the above coating
Front material: UV-protected polycarbonate (IK10) or impact-resistant glass (IK09)
Color: Titanium Black
Connection: 2.0m cable (H07BQ-F)
Fixture information
Lamp weight: 9.2 kg
Product dimensions: 320 x 350 x 90 mm
Packaging dimensions: 380 x 410 x 150 mm
Luminaire light color
Light color (cool white): 6500K
Light color (white): 4000K
Light color (warm white): 2700K
Light color (amber): 2200K
Switchable in 2 colors (cool / amber) also available
User information
14Ā° Spot ā illuminates surfaces at very long distances (50m to 300m)
38Ā° Beam ā illuminates surfaces at medium distances (30 to 100m)
69Ā° Beam Spread - illuminates a very wide area at close range (15 to 60m)
14Ā°x46Ā° Flare - illuminates a wide but focused area at a distance (up to 150m)
Warranty
5 year warranty
SH66 | 320W | 20-35VDC / 35-60VDC
Light output
Brightness: 46,000 lumens
Efficiency: 144 lumens / watt
Power consumption: 320W
Amperage (24V): ~13.4A
Amperage (48V): ~6.7A
Rated voltage: 24V / 48V
Voltage range: 20-35VDC / 35-60VDC
Luminaire specifications
IP rating: IP69K
Impactrating: IK10
CRI (Ra): >70
Operating temperature range: -45Ā°C to +50Ā°C
Lifespan (L80B10): 196 000 hours
Lamp housing material: Aluminum alloy, <0.08% copper
(conversion layer & 2-layer titanium-based e-coating)
Lamp bracket material: High-strength 316L stainless steel with the above coating
Front material: UV-protected polycarbonate (IK10) or impact-resistant glass (IK09)
Color: Titanium Black
Connection: 2.0m cable (H07BQ-F)
Fixture information
Lamp weight: 9.2 kg
Product dimensions: 320 x 350 x 90 mm
Packaging dimensions: 380 x 410 x 150 mm
Luminaire light color
Light color (cool white): 6500K
Light color (white): 4000K
Light color (warm white): 2700K
Light color (amber): 2200K
Switchable in 2 colors (cool / amber) also available
User information
14Ā° Spot ā illuminates surfaces at very long distances (50m to 300m)
38Ā° Beam ā illuminates surfaces at medium distances (30 to 100m)
69Ā° Beam Spread - illuminates a very wide area at close range (15 to 60m)
14Ā°x46Ā° Flare - illuminates a wide but focused area at a distance (up to 150m)
Warranty
5 year warranty
The Shark focuses on lightweight design and slightly higher efficiency (lm/W). The Barracuda is more compact and even more robust, while the Orca focuses primarily on extreme lumen output (above 100,000 lumens).
The Shark is available with 14Ā° (diffuser), 38Ā° (medium-wide), 69Ā° (wide), and 14Ć46Ā° (asymmetric flare optics). Our experts will help you choose the right lens for your crane or port operation.
Yes, thanks to the high IP69K rating, the Shark is maximally protected against dust, rain, and storms, ideal for outdoor and industrial applications. More about IP and IK protection ratings in this article.
Currently, the standard operating temperature is up to +50Ā°C. For extreme heat environments, please refer to, for example, our Barracuda HT or Orca HT.
Yes, we operate in the global market and can supply our products and services worldwide. Our international experience enables us to meet the needs of end users around the world.
Yes, we offer trial versions by arrangement. Contact our experts for the possibilities.
Yes, we actually recommend choosing the right lens for each position to ensure optimal light distribution across your entire work area.
The standard lifetime is 196.000hour (L80B10), which equates to 25+ years in average industrial use.
That depends on your power supply. We offer both AC (90-305V and 180-528V) and DC (20-35V) variants.
The Shark is equipped with high-quality lenses that optimally concentrate and direct the LED light onto the desired work area. Choose a narrow spot beam (14Ā°) for bright illumination of distant points, or opt for wider angles for even lighting over a larger area. This allows you to perfectly tailor the light beam to your specific application, whether for lifting activities, inspection work, or creating a clear work zone.
By JEL Products we continue to innovate. Our lighting solutions are designed in the Netherlands in collaboration with leading machine builders from the European market to create affordable and universal complete solutions for the global market. This has resulted in:
The Shark LED Floodlight offers a perfect balance between weight, power, and reliability. With up to 50,000 lumens, IP69K protection, and a strong focus on corrosion resistance, the Shark is the ideal choice for industrial applications requiring high light output without compromising on mobility and ease of installation.
Progressive operators, machinists, and machine manufacturers choose our lighting to maximize workplace safety and truly see what they are working on. Never be in the dark again due to broken and inadequate lamps. Prevent costly replacements and opt for a work light that lasts through your tasks. Essential in a time when sustainability and environmentally conscious construction are central.
This is how the Shark has helped crane companies and industrial operators comply with the EN 12464-2 standardization for safe outdoor lighting, by combining high light output with easy installation and minimal energy waste.
Why is this important for businesses?
Our lighting solutions are designed to meet the requirements of the European standard EN 12464-2 regarding product properties. If you also wish to meet the technical requirements, please feel free to contact our Lighting experts.
Are you curious if the Shark LED Floodlight is the right choice for your machinery fleet, construction site, or offshore installation?
Let our experts advise you on the best lens configuration, voltage type, and any custom options.
Contact us for a free demo or custom lighting design.
Most powerful LED Floodlight made out of one housing on the market. With 156 lenses and its high lumen output interesting for use on the largest and heaviest machines in the world. Among others, Mammoet's choice for use in the SK6000, the largest land crane in the world.
These LED floodlights are widely used on: port cranes, large crawler cranes, heavy lift vessels, mining operations, and light towers.
Multi-configuration of the Snapper Floodlights built to combine a lightweight solution for higher wattages. Often used on harbor cranes and large equipment where net efficiency is top priority or where a compact floodlight size is desired, such as on STS and RMG cranes.
These LED Floodlights are widely used on: harbor cranes, Ship to Shore cranes, RMG cranes and mobile light towers.
Robust floodlight built as an efficient all-rounder with a rock-solid housing. Labeled by many as indestructible. You choose these LED floodlights if you want the maximum luminous flux per watt in addition to a robust housing. These are very interesting for mining, cranes and heavy equipment.
These LED Floodlights are widely used for impact oriented purposes in mining, steel industry and bulk terminals.
Extremely compact LED Floodlights built to combine the right combination of ruggedness and light weight in a housing with no compromises. Commonly used on machinery and cranes where installation space is limited or where a compact size floodlight is desired, such as ships.
These LED Floodlights are widely used on: mobile tower cranes, fast ships, mobile light towers and for rescue services.
Discover the power of JEL Products and its industrial LED lighting solutions for greater savings in energy, costs, and CO2 emissions, while simultaneously improving your work safety. Contact us today by filling out the form below, so we can assist you in optimally illuminating your work environment.
